Grass plot sampler - Ø 23 mm

05

The grass plot sampler has a 23-mm diameter and is used as a gouge auger set for top layers. The grass plot sampler has an operational length of 5 or 10 centimetres, and a total length of 95 centimetres.

  • Soil sampling above groundwater table
  • Undisturbed sampling
  • Root zone sampling
  • Tough non toxic stainless steel
  • Perfect for soil sampling on air-born deposits

Description

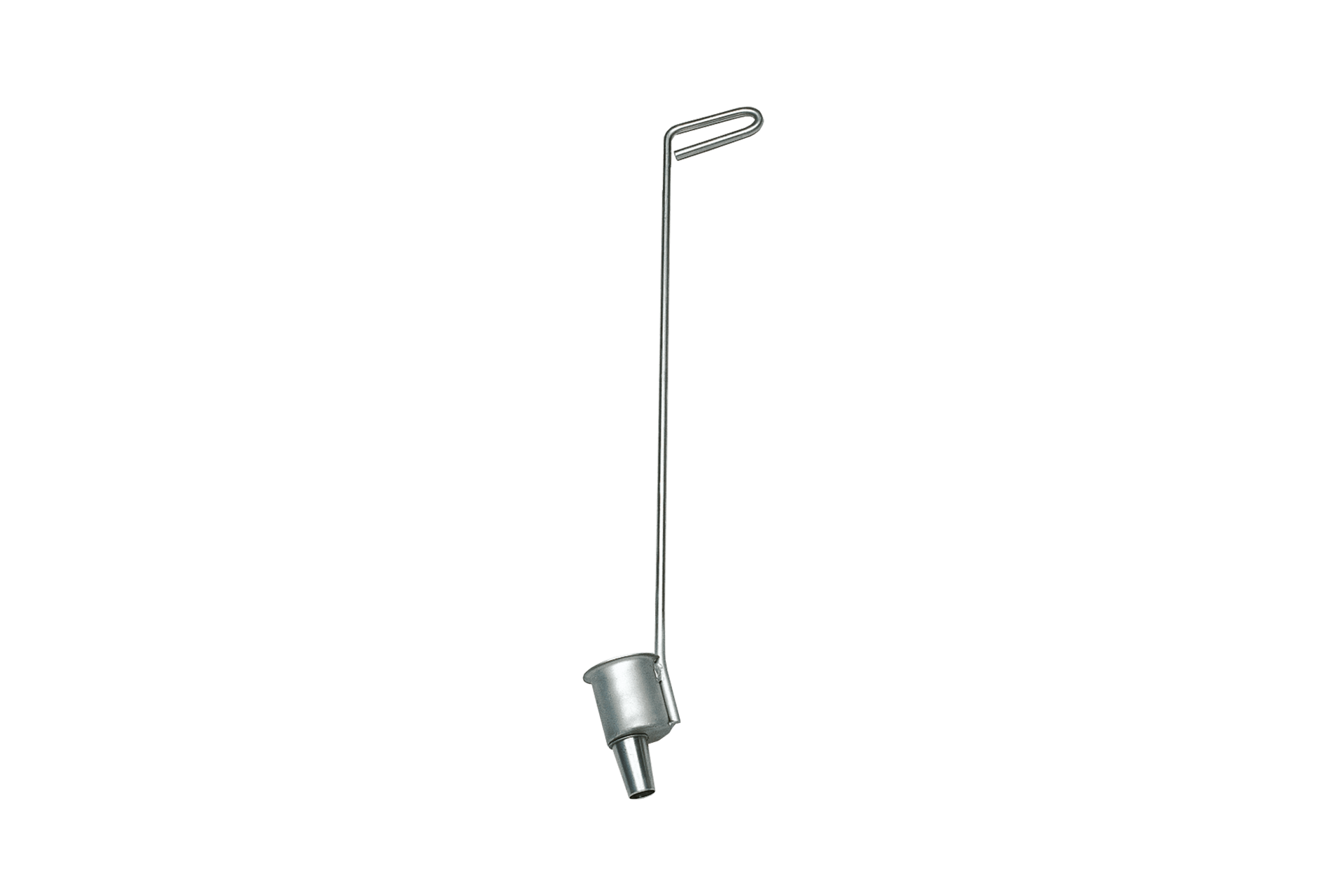

These stainless steel gouge augers with different dimensions consist of a steel auger pipe, a collecting bucket and a stick with a steel handle. The auger pipe is filled by pressing the collecting bucket with your foot. Because of the conical shape of this pipe the sample is easily pushed toward the collecting trough when the next sample is taken. It is easy to take samples while walking.

The correct number of samples per hectare depends, among other factors, on the type of crop, the relief and the type of soil. In case of grassland it is required to take 30 samples per hectare.

It is possible to quickly take samples of the top 5 or 10 centimetres of grass covered areas, for root- and/or fertilisation research, with these type of augers. The grass plot sampler is particularly suitable for research in grassland farming but also in horticulture and for the Parks and Public Gardens Department.

Applications

  • Soil sampling above groundwater table
  • Environmental soil research
  • Undisturbed sampling
  • Root zone sampling

Product variants

  • 05.03 Grass plot sampler small, 5 cm
  • 05.10 Grass plot sampler large, 10 cm

Specifications

Grass plot sampler - Ø 23 mm
Maximum root thickness 5 mm
Maximum sample depth 5 or 10 cm
Product material Stainless steel, iron
Sample diameter 23 mm
Sample length 50 or 100 mm
Sample specification Undisturbed
Sample volume 25 or 50 ml
Sampler position Vertical
Package size 75 x 10 x 10 cm / 85 x 15 x 15 cm
Weight 0.9 kg/1.4 kg
