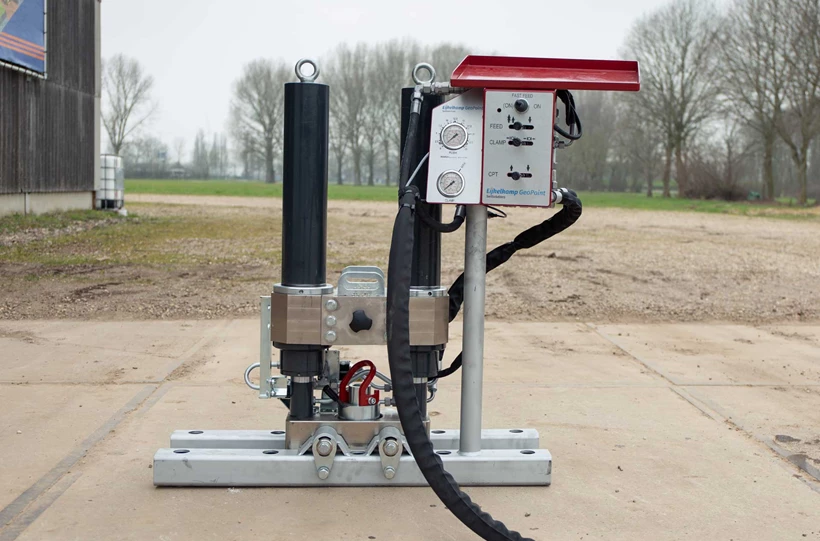

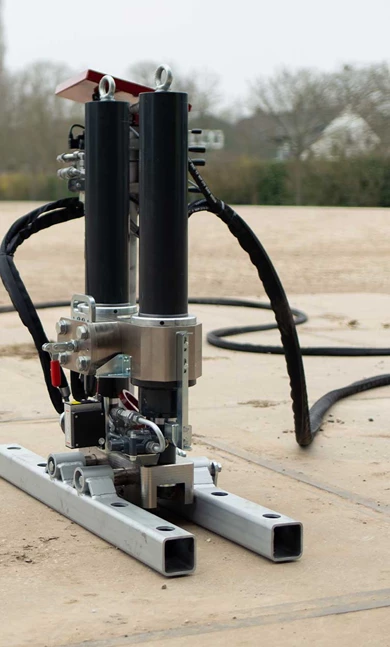

CPT Pusher 200
CPT Pusher 200

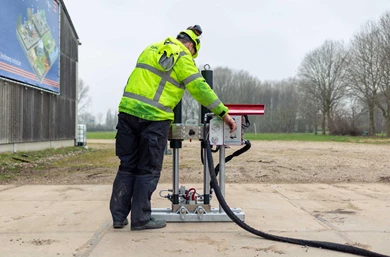

Using the CPT Pusher 200

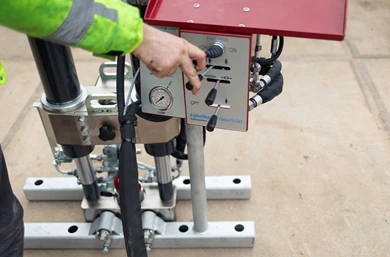

CPT Pusher 200 Control Panel
CPT Pusher 200
CPT Pusher 200
Using the CPT Pusher 200
CPT Pusher 200 Control Panel

CPT Pusher 200 kN

CPT Pusher

The CPT pushers normally mounted on the Compact Crawler CPT systems can be purchased as stand-alone units with or without the hydraulic powerpacks. These pushers can then be mounted to existing carriers or used in combination with a ground frame for work in basements and other hard to reach locations.

  • Easy to operate
  • Suitable for stand-alone use
  • Easy to transport on Compact Crawlers
  • Limited stroke length for low overhead clearance operation
  • Can be operated with long hydraulic hoses to allow indoor operation

Description

The range of stand-alone CPT pushers are designed to offer the highest degree of flexibility. With these, you can do your cone penetration testing at even the most logistically challenging projects.

If you need extra power, the 200 kN is your model of choice. The pushers can be mounted to almost any rig or surface using the available frames. With its low ram stroke of only 550 mm, as well as the ability to operate with long hydraulic hoses, the 200 kN model is perfect for use in basements or other enclosed areas.

As well being able to use a provided hydraulic powerpack, through the use of quick connect couplings the stand-alone pushers can also use the PTO of a system such as an excavator. This offers an even greater degree of flexibility.

The CPT Pusher 200 kN is supplied with either the Pitbull mechanical push-pull clamp or the ball clamp, which greatly simplifies the pushing and pulling of the CPT tubes.

Specifications

CPT Pusher 200 kN
Pushing force 200 kN | 20 tf (long)
Stroke 1050/550 mm | 41/22 in
Weight 230/200 kg | 510/440 lbs
