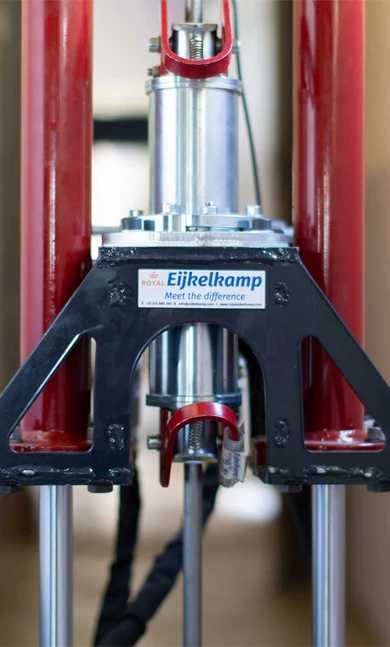

Parvus CPT35 pusher

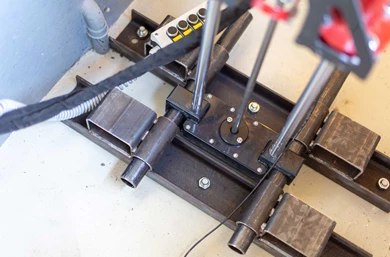

Parvus CPT35 pusher and clamp close-up

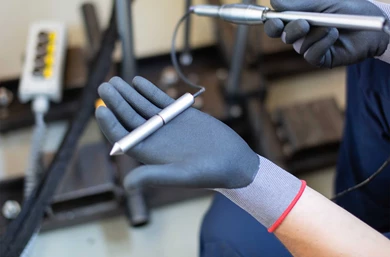

Small CPT cone

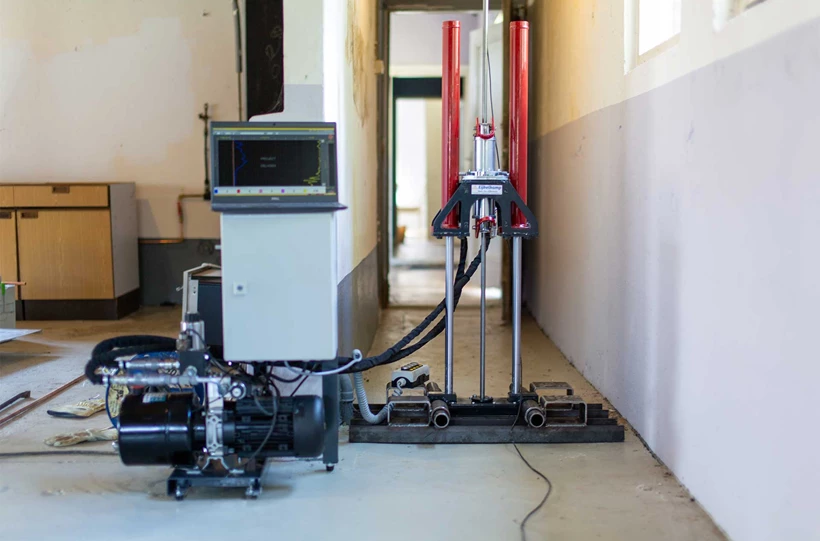

Using anchored Parvus CPT35 pusher
Parvus CPT35 pusher
Parvus CPT35 pusher and clamp close-up
Small CPT cone
Using anchored Parvus CPT35 pusher

Parvus 35 kN

CPT Pusher

The Parvus 35 kN is a lightweight stand-alone CPT push frame for the deployment of mini CPT cones. The unit can be mounted to a CPT carrier or directly mounted to almost any surface through the use of the available frames. The unit is powered through a supplied, lightweight hydraulic power pack.

  • Easy to move and transport given its size and weight
  • Suitable to perform CPT at most challenging locations
  • Limited stroke length to operate in low overhead places

Description

The range of stand-alone CPT pushers are designed to offer the highest degree of flexibility to allow you to undertake CPTs on even the most logistically challenging projects.

The Parvus 35 kN is the most lightweight and transportable system in the range, being easily hand portable as well as simple to operate. The Parvus can deploy 2 or 5 cm2 cones and is perfect for use in enclosed areas, thanks to the included electric powerpack.

When only very small pushing forces are required, for near surface investigations or in soft soils, or when using smaller diameter cones, 35 kN may be more than adequate. In those cases the Parvus is ideal. This pusher is provided with a ball clamp, which greatly simplifies the pushing and pulling of the CPT tubes.

Specifications

Parvus 35 kN
Pushing Force 35 kN | 3.5 tf (long)
Conus type 2 cm2 | 5 cm2
Diameter CPT rods 16 mm | 25,2 mm
CPT stroke 600 mm | 23,6 in
CPT down speed 1.5 - 4.3 cm/s
Maximum up speed 9.3 cm/s
Weight (max.) 45 kg | 100 lbs
Transport dimensions (LxWxH) 900 x 380 x 275 mm
Powerpack Electric 230V 50Hz, 16A
Hydraulic connection Min. 130bar @ 3 l/min
