Soil sample ring kit E53, 53mm diameter
Soil sample ring kit E53, 53mm diameter

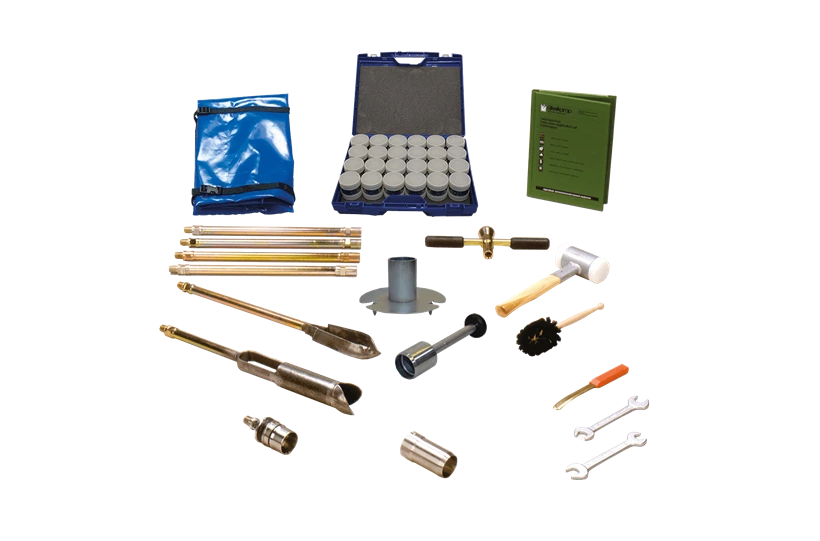

Soil sampling ring kit - model E53, heavy

07.53.SE

Sample ring kit model E53 heavy has a heavy duty sample ring holder for sampling in hard soils. This is a standard set for a depth of 2 metres. The kit is used for soil sample rings with a diameter of 53 millimetres. Soil sample ring kits are used for a variety of tests, including bulk density determination of soil.

  • Standard set for a depth of 2 metres
  • Suitable for hammering
  • Undisturbed sample
  • Sample ring protected by ring holder
  • Kit allows sampling at surface and at depth

Description

With this sample set, undisturbed samples can be taken in virtually all soils to a depth of 2 metres with a diameter of 53 millimetres, provided there are no rocks in its way. The samples can be taken from the surface, from the bottom of auger holes or from soil profile pits, both above and below the groundwater level. There are also two other types of sets available with a different ring size.

The physical properties of soils are largely determined in the laboratory. Such studies usually require undisturbed soil samples, preferably with uniform dimensions. To meet these requirements, soil samples are taken in rings of a known volume and diameter.

Royal Eijkelkamp soil sample rings are made of seamless stainless-steel tube, smooth inside and out for as less as possible friction. The bottom of the ring has a cutting edge. The precise made dimensions and thus the volume content of the ring is exact, which makes it highly suitable for laboratory studies. The valve system can be cleaned easily.

Applications

  • Water permeability
  • Air permeability
  • Weight by volume
  • Density
  • The soil-water-air relationship at field capacity
  • The pore distribution
  • The oxygen diffusion
  • Determination of moisture content as various moisture tension levels, from which a pF-curve can be made

Specifications

Soil sampling ring kit - model E53, heavy
Connection N/A
Sample diameter 100 mm
Sample length 30 mm
Sample volume 235 ml
Sample specification Undisturbed
Sample stored in Container
Sample position Vertical
Package size 117 x 27 x 33 cm
Weight 31 kg
