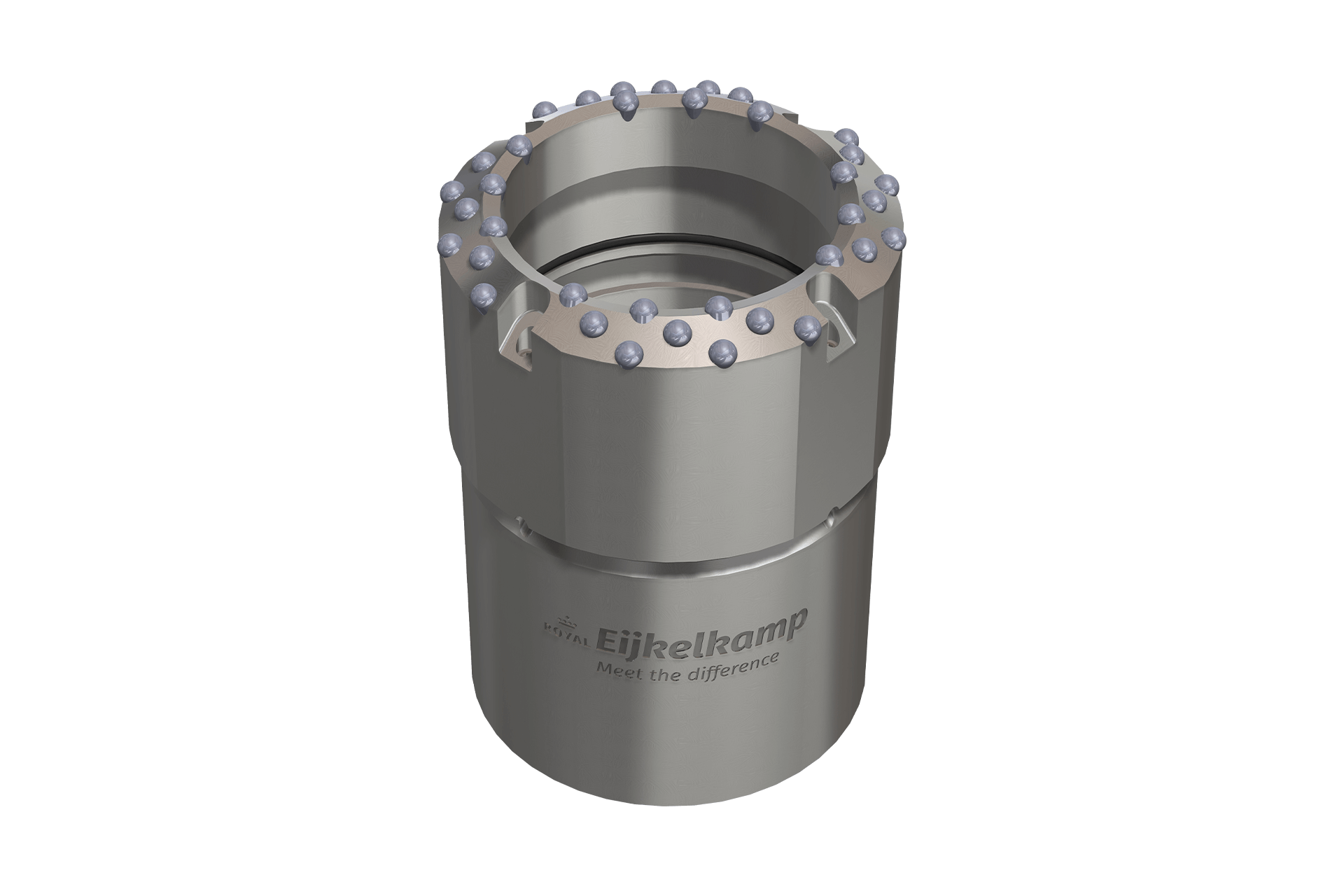

The Standard type dual wall core barrel bit is suitable for a wide range of drilling applications.
This bit offers optional front or side discharge. The discharge holes can be sealed using a hex socket screw which is included with the bit.
While this bit is capable of drilling through extremely hard rock, switching to the Hard Rock bit is recommended for extended drilling in such conditions to improve efficiency and prolong bit lifespan.
Product variants
| Dual wall Standard bit | |
|---|---|
| Applications when using side discharge | All soils up to soft rock, including consolidated or compact materials |
| Applications when using front discharge | Compact and consolidated soils, up to medium rock |
| Type of button | Dome buttons |
| Usage of overcut | yes |
| Water slots | no |
| Wear protection buttons | no |
| Inner cutting buttons | no |
| Water discharge | Yes, offers adjustable discharge settings: front, side, or both |
