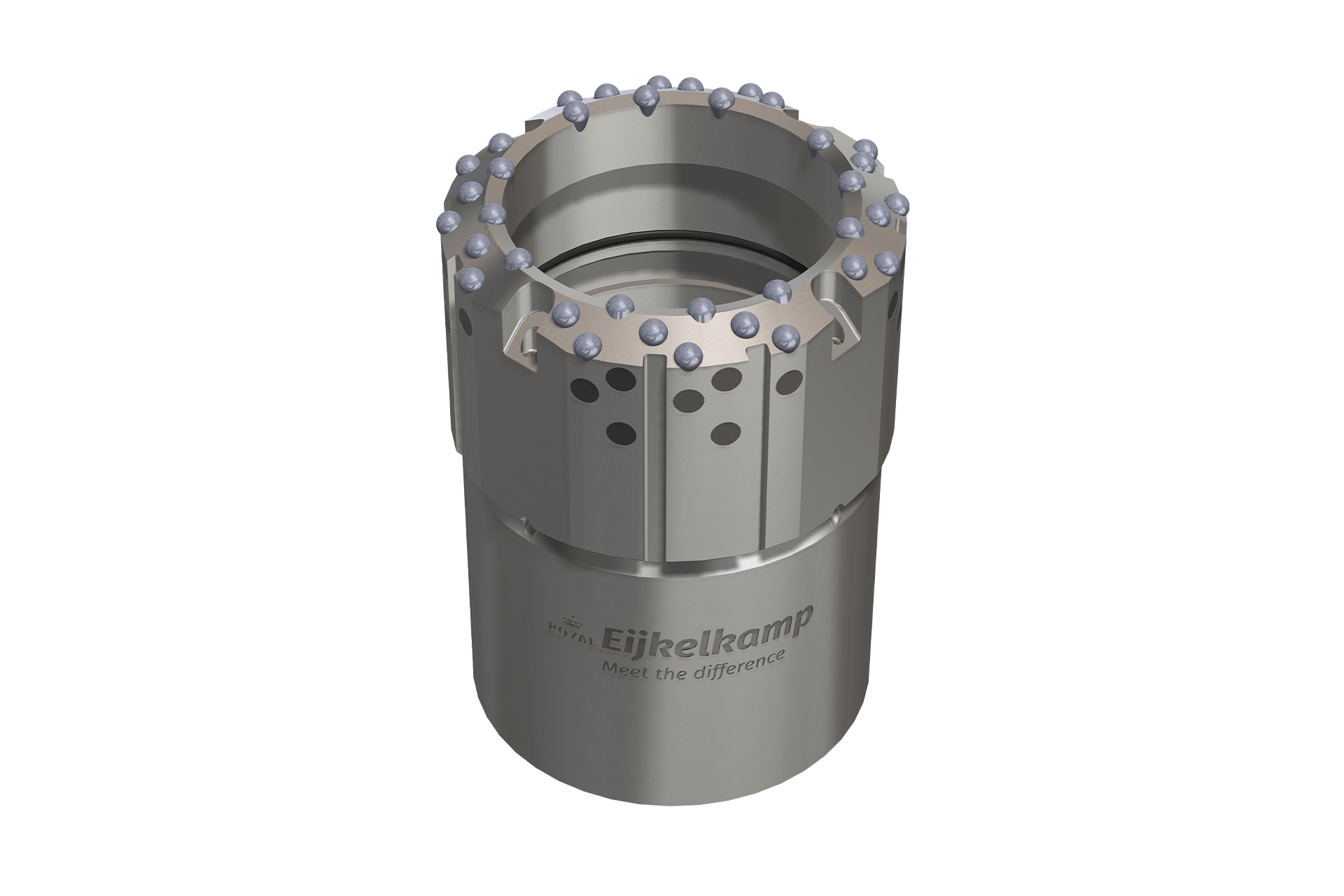

The dual wall Heavy duty bit features a combination of dome buttons, wear protection, and overcut, making it highly effective for drilling in harder formations.
The dual wall Heavy duty bit offers the flexibility of front or side discharge, with discharge holes that can be sealed with a hex socket screw which comes delivered with the bit.

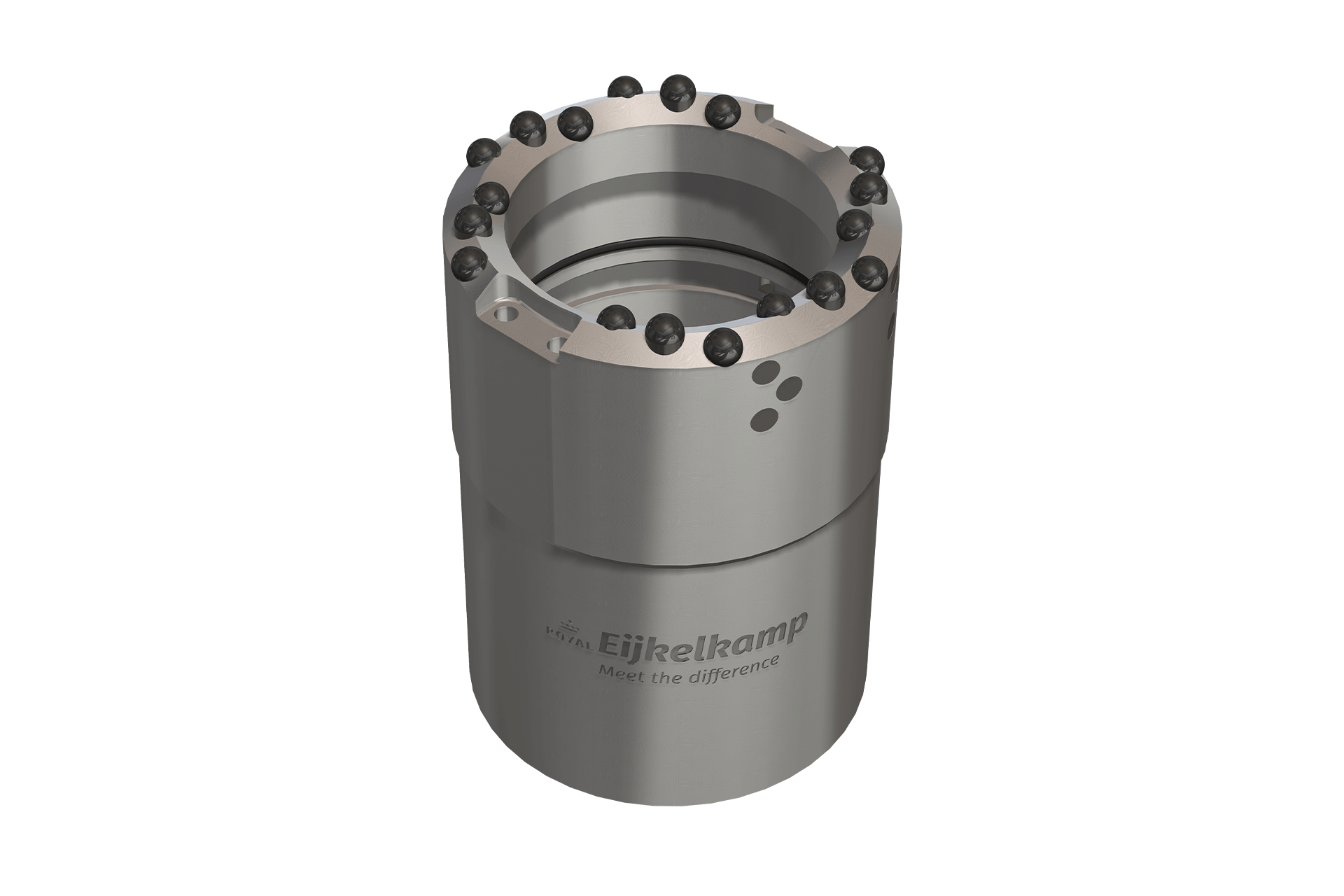

While this bit is capable of drilling drill through extremely hard rock, switching to the Hard Rock bit is recommended for extended drilling in such conditions to improve efficiency and prolong bit lifespan.
Product variants
| Dual wall Heavy duty bit | |
|---|---|
| Applications when using side discharge | All soils up to soft rock, including consolidated or compact materials. |
| Applications when using front discharge | All soils up to harder rock. |
| Type of button | Dome buttons |
| Usage of overcut | yes |
| Water slots | no |
| Wear protection buttons | yes |
| Inner cutting buttons | no |
| Water discharge | Yes, offers adjustable discharge settings: front, side, or both |
