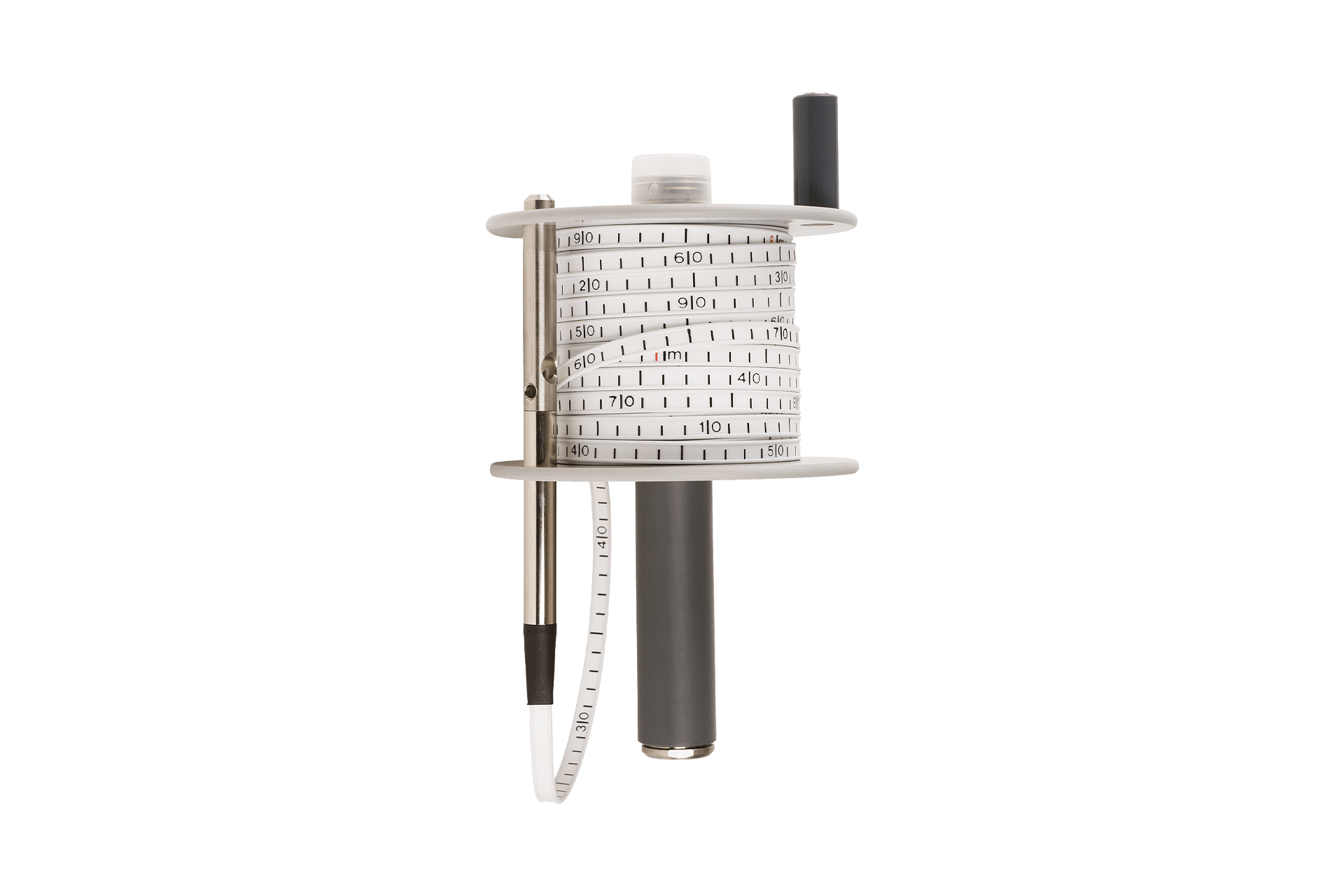

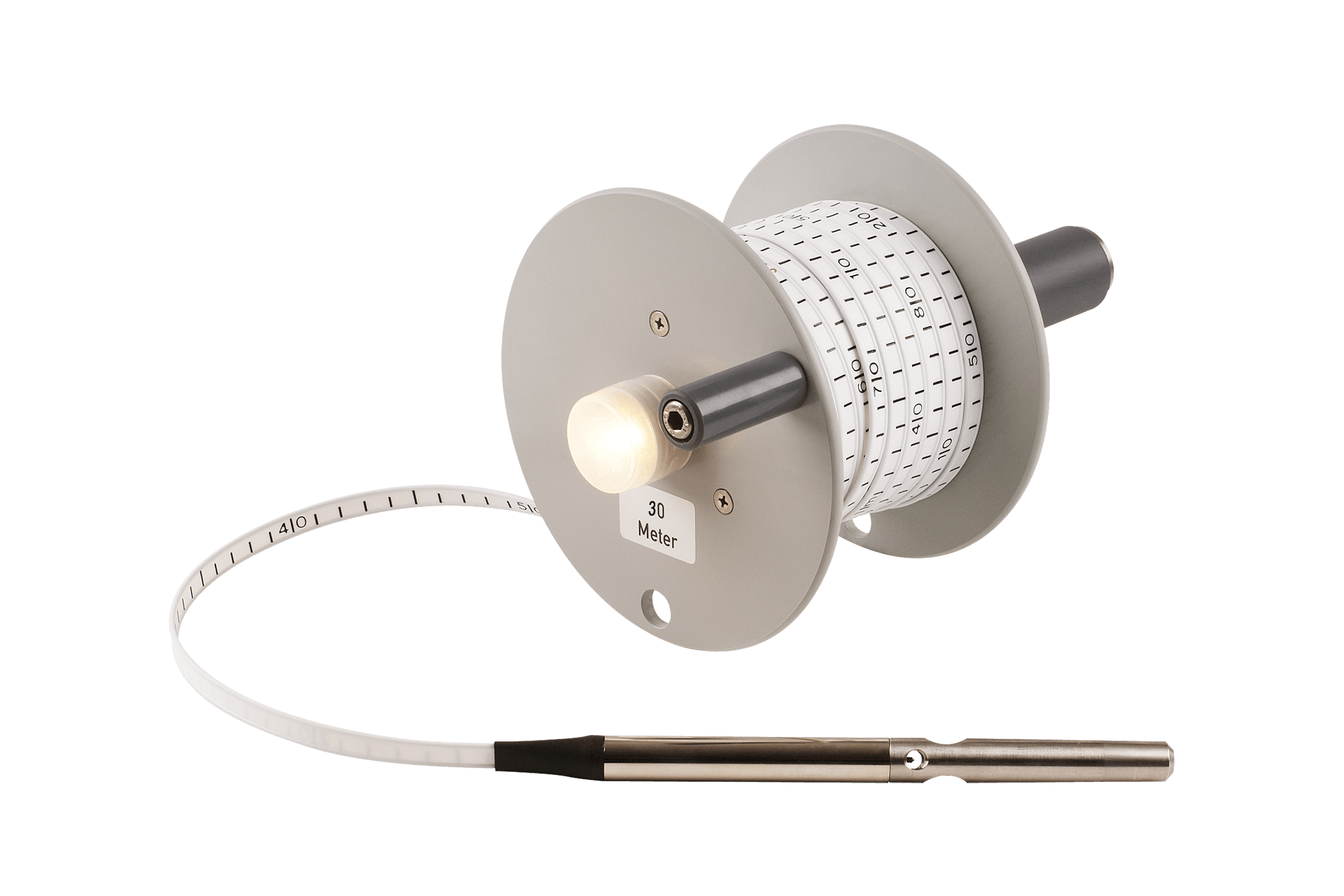

This Water level meter with acoustic and light signal is compact and robust. It is used for measuring the water level and is available in three different lengths: 49.2, 98.4, 164 feet (15, 30, 50 meters).

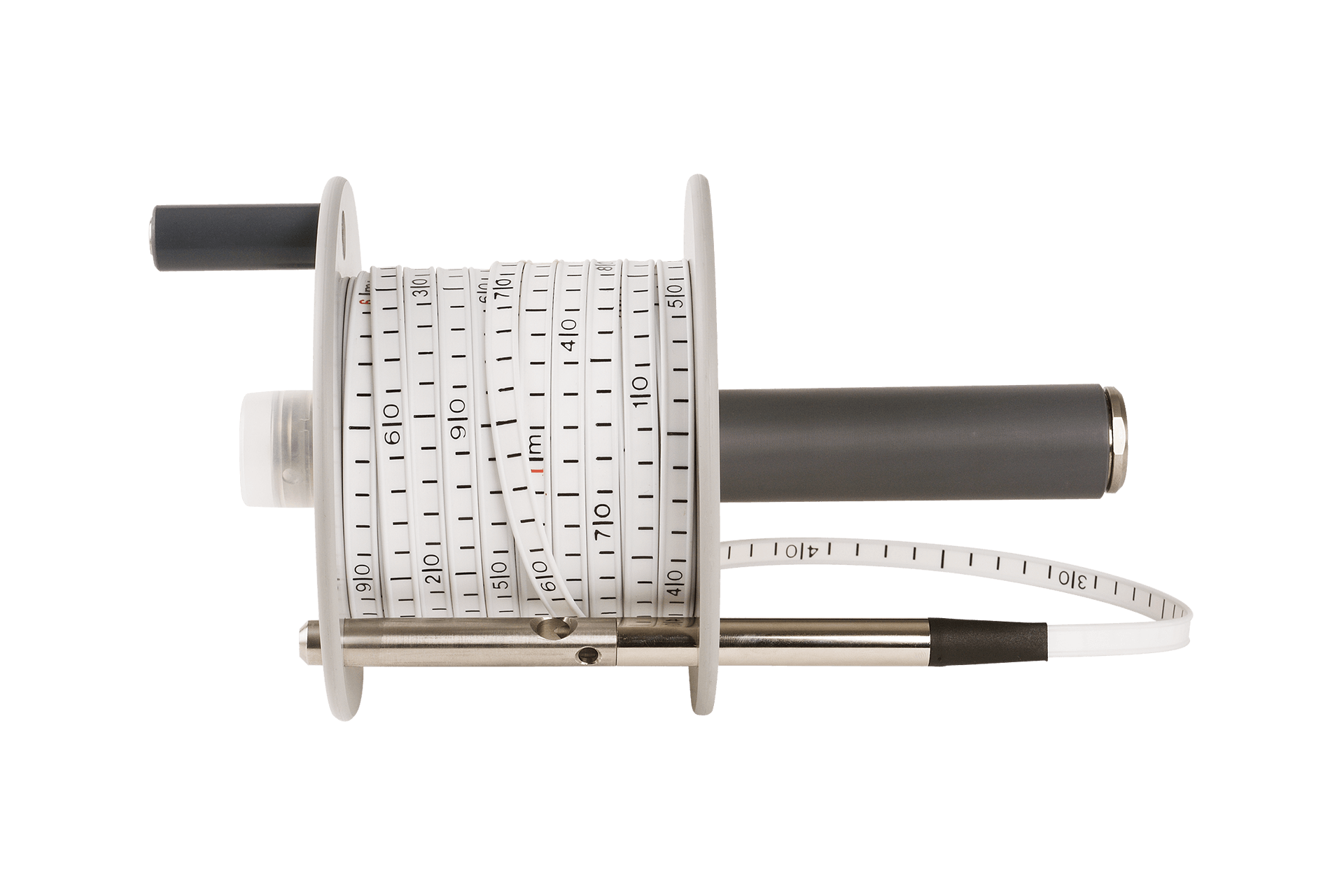

The water level meter is part of the standard equipment for measuring the groundwater level. It is provided with a stainless-steel probe, which is connected to a measuring tape with centimeter graduation. This compact version is characterized by its robust design and favorable price. Its low weight and slim design make it easy to transport.
When the probe touches a conductive liquid, it will emit a clear acoustic and light signal. Once the cable is then slightly lifted, the signal will stop, and the depth reading can be done directly from the measuring tape (accuracy: ± 1 centimeter).
Available variations
Applications
Water quantity research
| Water level meter | |
|---|---|
| Diameter (D) and /or size (L*W*H) | Sensor D 0.59 in, L 7.67 in / Sensor D 15 mm, L 195 mm |
| Measured parameters | Level |
| Measuring principles | Conductivity |
| Power suply | Battery, 4x 1,5 volt DC (AA) with 2 years lifetime |
| Product material | Stainless steel and electroplated brass (easy to clean) |
| Safety class for probe | IP 68, permanently pressure resistant |
| Safety class measuring tape | IP 64, spray water resistant |
| Reading accuracy | 0.4 in (1 cm) |
| Registration type | Manual |
| Recommended storage temperature | +41 °F up to +86 °F (+5 °C up to +30 °C), for battery protection |
| Package size | 13.4 x 8.7 x 9 or 15.4 x 13.8 x 13.8 in / 34 x 22 x 23 or 39 x 35 x 35 cm |
| Weight | 4.6 or 6.6 or 11 lbs / 2.1 or 3 or 5 kg |
