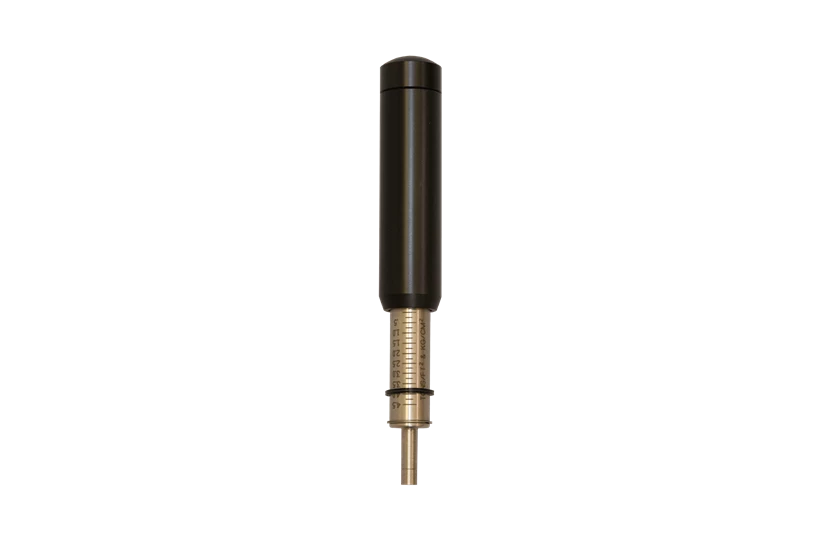

Use the pocket penetrometer to determine the resistance of penetration of top layers (measuring depth of 0.19 inch (5 millimeter) and of samples in the field or in the laboratory. The measuring range of this instrument is 0,5 MPa.
The pocket penetrometer is specifically used to determine the penetration resistance of top layers (measuring depth 0.19 inch (5 millimeter) and of samples in the field or in the laboratory. The measuring range is 0,5 MPa. It displays the penetration resistance encountered immediately.

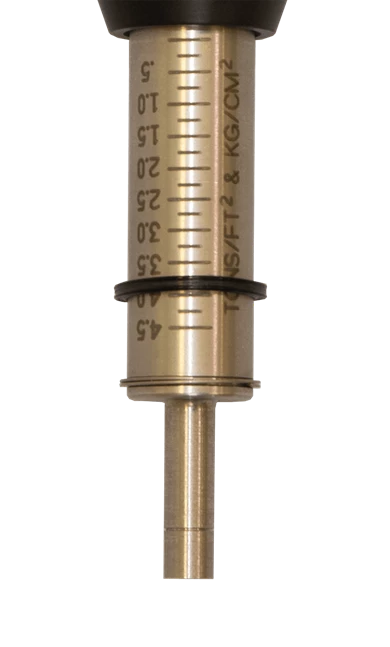

When pushing the instrument into the ground, the pin encounters a force of the ground. The spring is compressed by this force. A slip ring is taken along during this operation, which shows on the scale the maximum force that has been encountered.
The scale has been calibrated in such a way that the penetration resistance encountered can be read on it immediately.
Applications
Would you like more information or do you have any questions? Please download our brochure or contact our specialist.
| Pocket penetrometer | |
|---|---|
| Angle of cone | 0 ° |
| Cone surface range | 0,3165 cm² |
| Maximum force | 500 @ 0,3165 cm² kPa |
| Maximum measuring depth | 0.39 inch | 1 cm |
| Measured parameters | Penetration resistance |
| Measuring range | 0...500 kPa |
| Product material | Stainless steel, iron, PVC, other material |
| Reading accuracy | 3% |
| Registration type | Manual |
| Package size | 7 x 1.5 x 1.1 inch | 18 x 4 x 3 cm |
| Weight | 0.7 lbs | 0,32 kg |
| Filename |
|---|
| Manual 06.03 Pocket Penetrometer |
