Hand penetrometer for top layers - IB

06.06

The hand penetrometer for top layers is a device that is used to determine the penetration resistance of top layers. This instrument can also be used for horizontal measurement, for instance in the walls of profile pits, thanks to the limited overall length of the device.

  • Easy to determine the density in top layers
  • Good measurements at 15x cone diameter
  • Drag pointer for easy read-out
  • Durable construction
  • Factory calibrated exchangeable springs
  • Possibility of horizontal measurements

Description

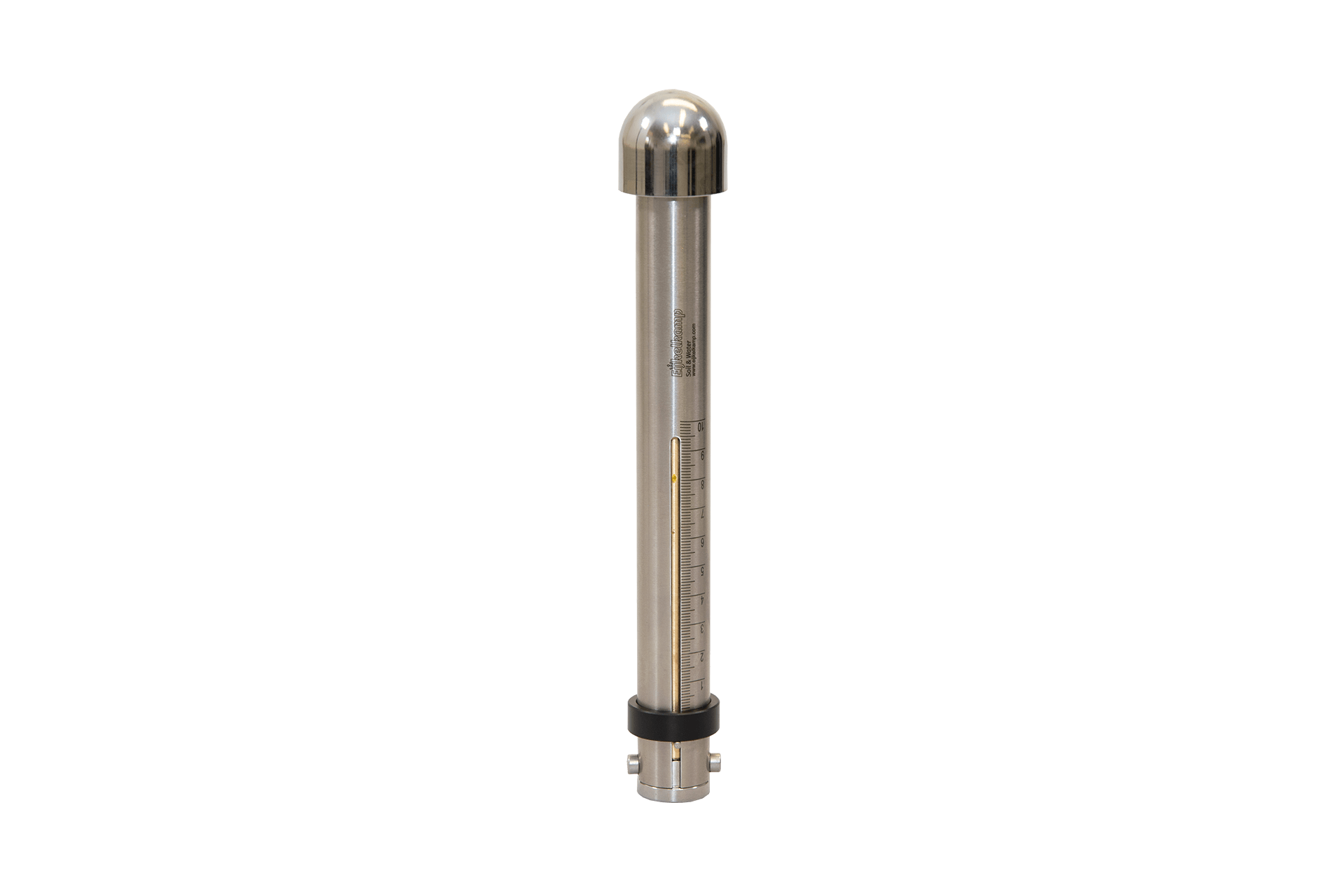

The Royal Eijkelkamp hand penetrometer is used to determine the penetration resistance of top layers. For instance, if you wish to determine the density in a top layer of a sports field in order to decide whether it is playable. Because of the limited overall length of the device, the hand penetrometer can also be used for horizontal measurement, for instance in the walls of profile pits.

The principle of the hand penetrometer is based on measuring the highest penetration resistance of a cone over a distance of about 3.9 inch (10 centimeter). The penetration resistance is measured by means of a compression spring.

The instrument is supplied with a number of cones and compression springs. The combination of a cone and a compression spring is selected based on the expected penetration resistance. If the expected penetration resistance is high, a cone with a small surface is selected and a compression spring with a large maximum force and vice versa.

Applications

  • Soil profile description and classification
  • Determining the density in top layers, i.e. whether a sports field is playable
  • Horizontal measurements

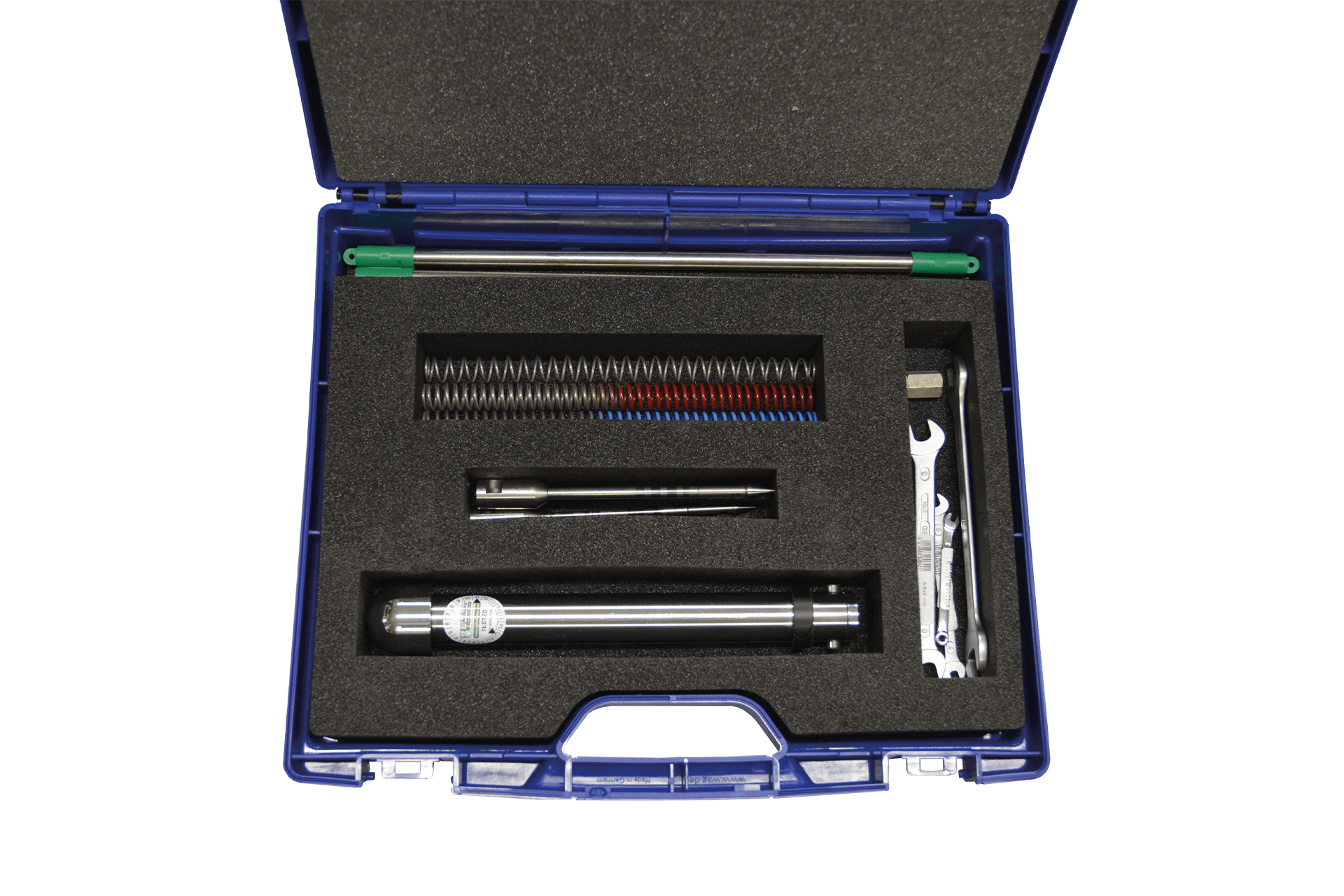

Set contains

  • Measuring device
  • Extension rods
  • Sounding rods
  • Various cones
  • Compression springs
  • Tools
  • Plastic case

Would you like more information or do you have any questions? Please download our brochure or contact our specialist.

Specifications

Hand penetrometer for top layers - IB
Angle of cone 30 °
Cone surface range 0.25 - 0.5 cm²
Connection Screw thread
Maximum force 1500 @ 0,25 cm² kPa
Maximum measuring depth 23.6 inch | 60 cm
Measured parameters Rod
Measuring accuracy 39.3 inch | 100 cm
Measuring range Undisturbed
Product material Stainless steel, iron, other material
Reading accuracy 1%
Registration type Manual
Package size 16.1 x 11.8 x 3.5 inch | 41 x 30 x 9 cm
Weight 5.9 lbs | 2.68 kg
