The Screw Impeller Pump 6 is a multipurpose pump that can handle both clean and dirty water, with large solids handling capabilities. It is a mobile, diesel-powered unit with an integrated vacuum system.

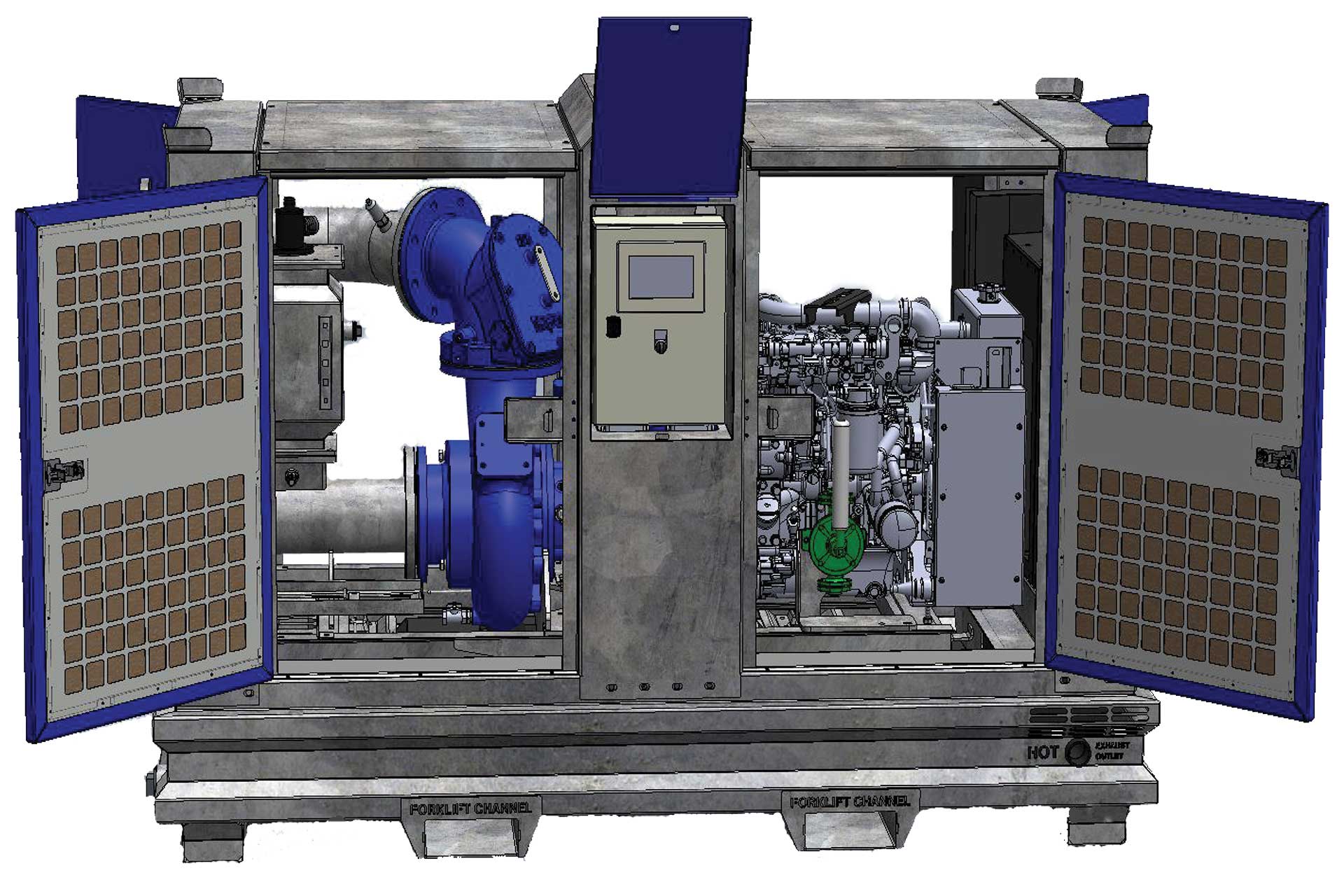

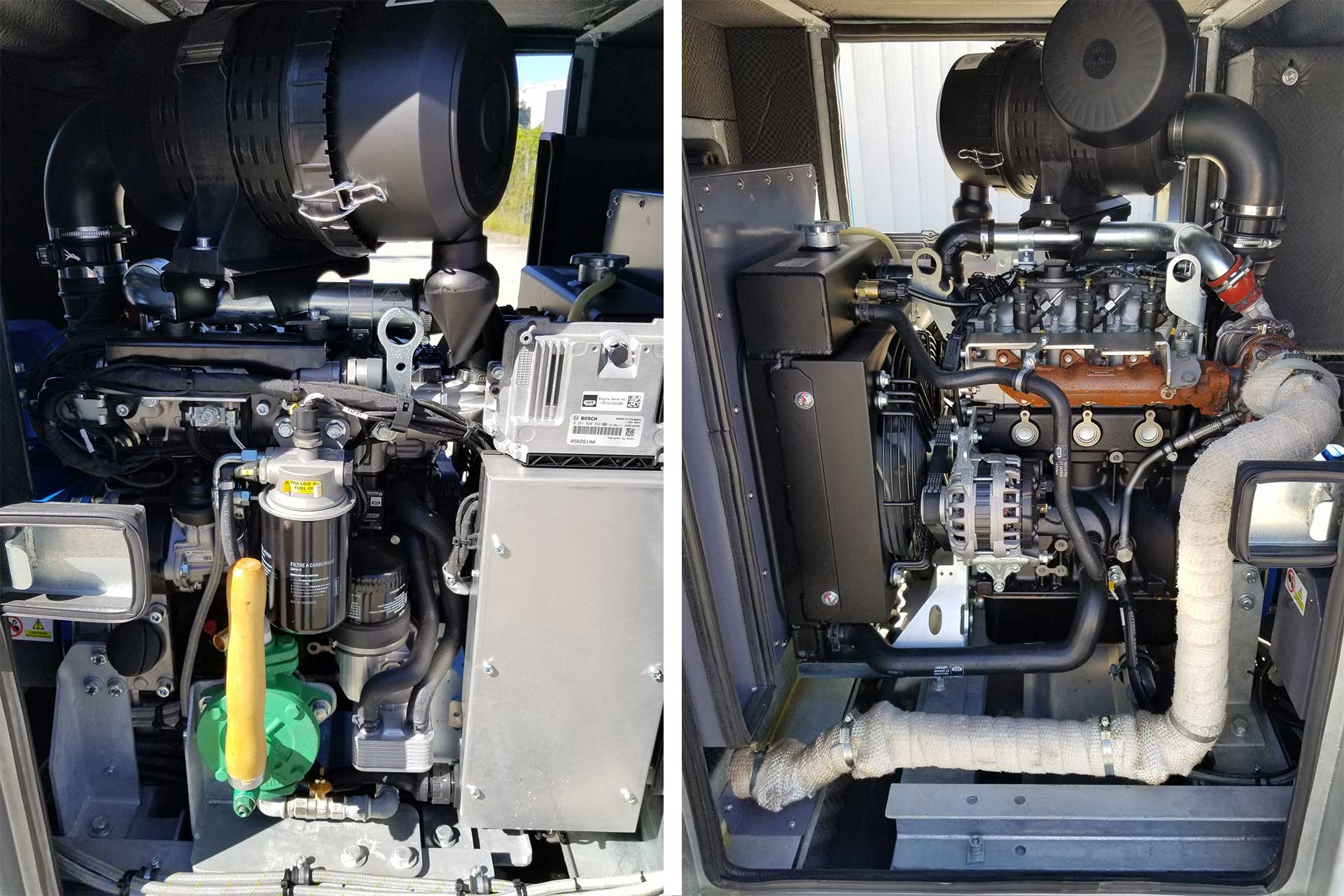

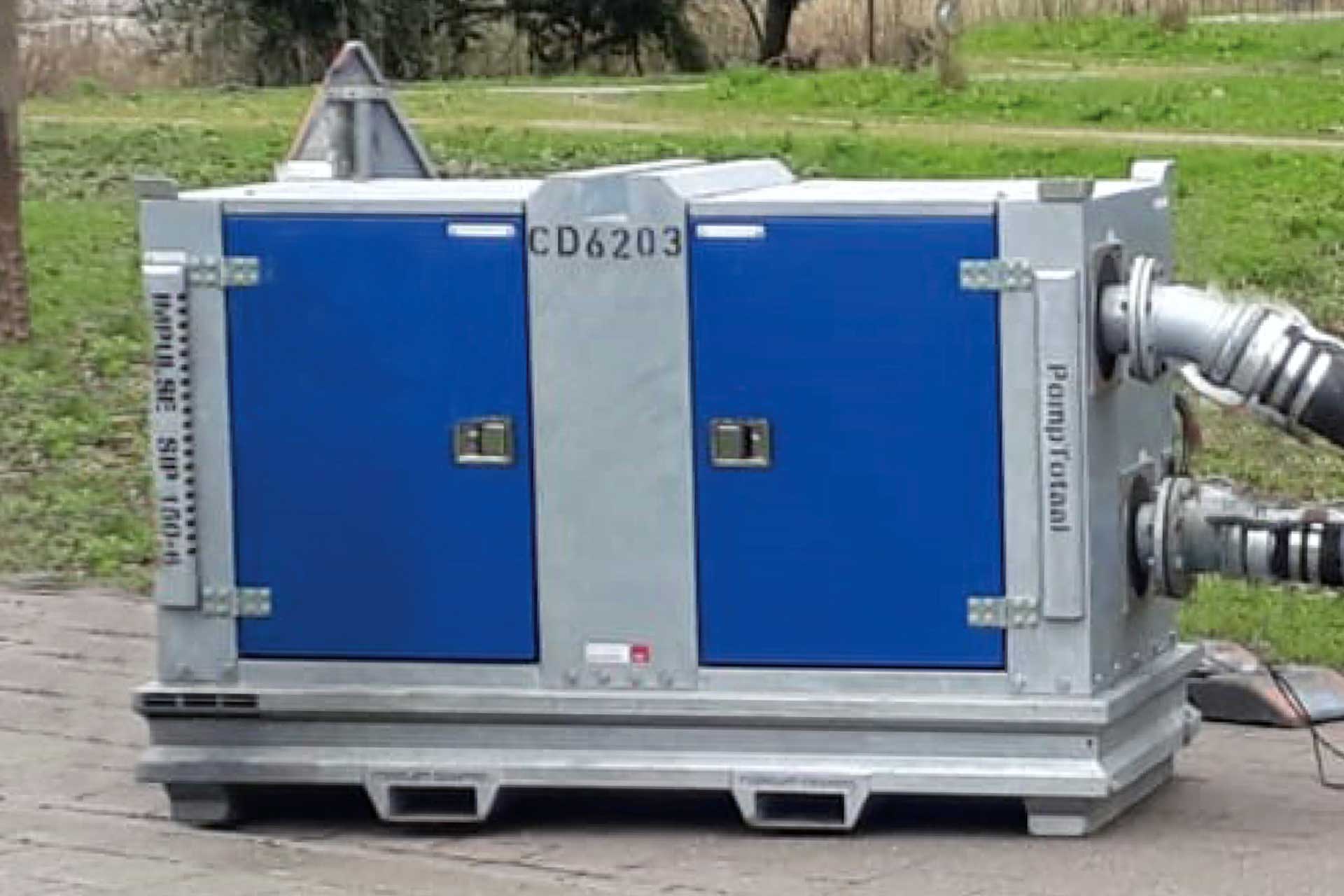

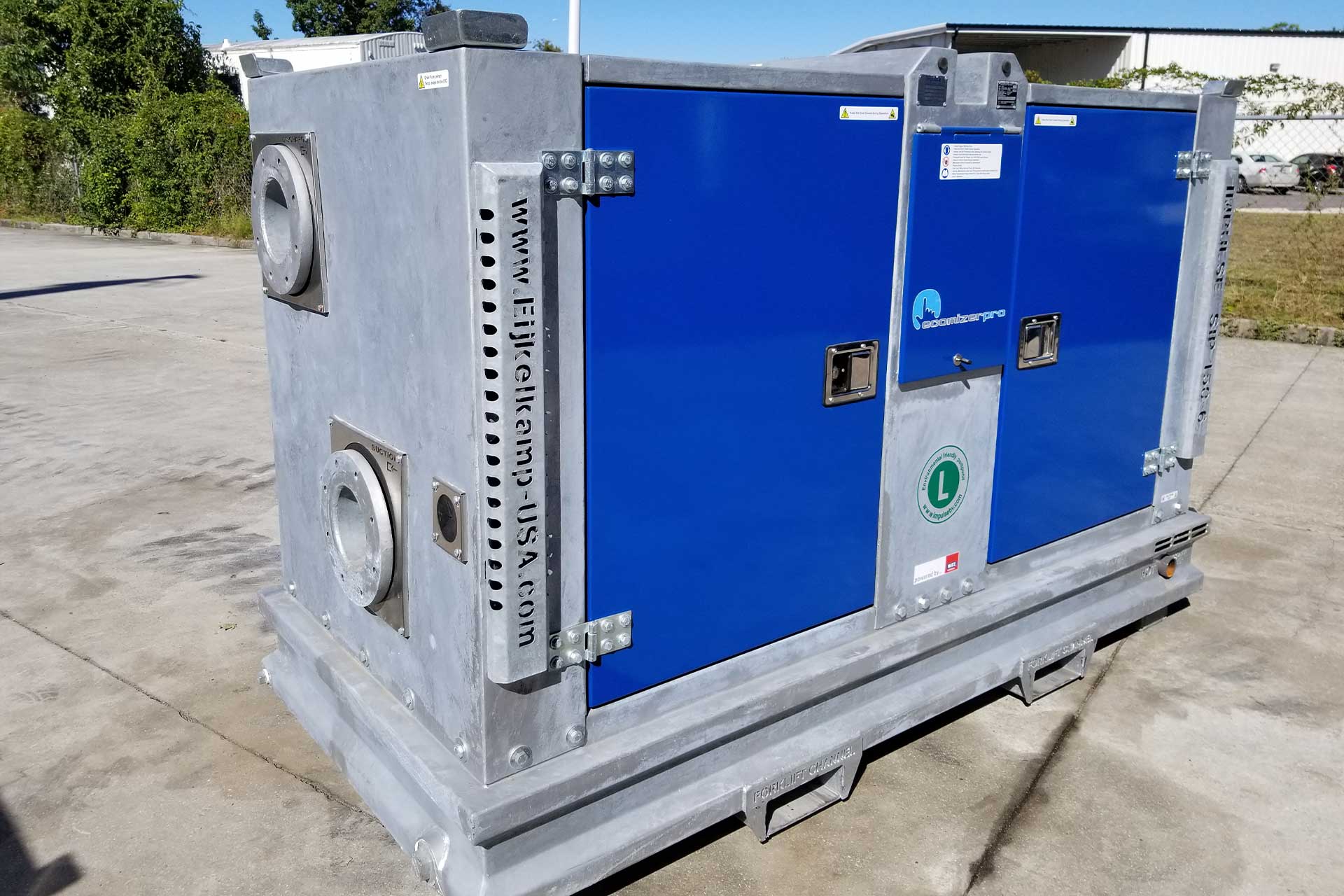

This pump is a diaphragm-assisted centrifugal screw impeller pump, using an efficient Hatz 3H50T water-cooled Tier 4 diesel engine. It is mounted on a sturdy galvanized chassis covered by a noise-reducing shell, with a lifting eye and forklift channels. Doors can be locked and all operating interfaces are installed securely inside the unit.
Fuel efficiency and quiet operation are the key advantages of this pump. It can run continuously for 4 days on one tank of gas, and puts out just 58 dB at 23 feet, making it ideal for working in communities and neighborhoods where sound suppression is important.
Typical applications are:
The SIP also has a run-dry feature. If the pump starts to pull in air, the engine will automatically be reduced to idle speed, avoiding unnecessary damage to the pump. If water is again detected, the pump will resume pumping at the previous settings.

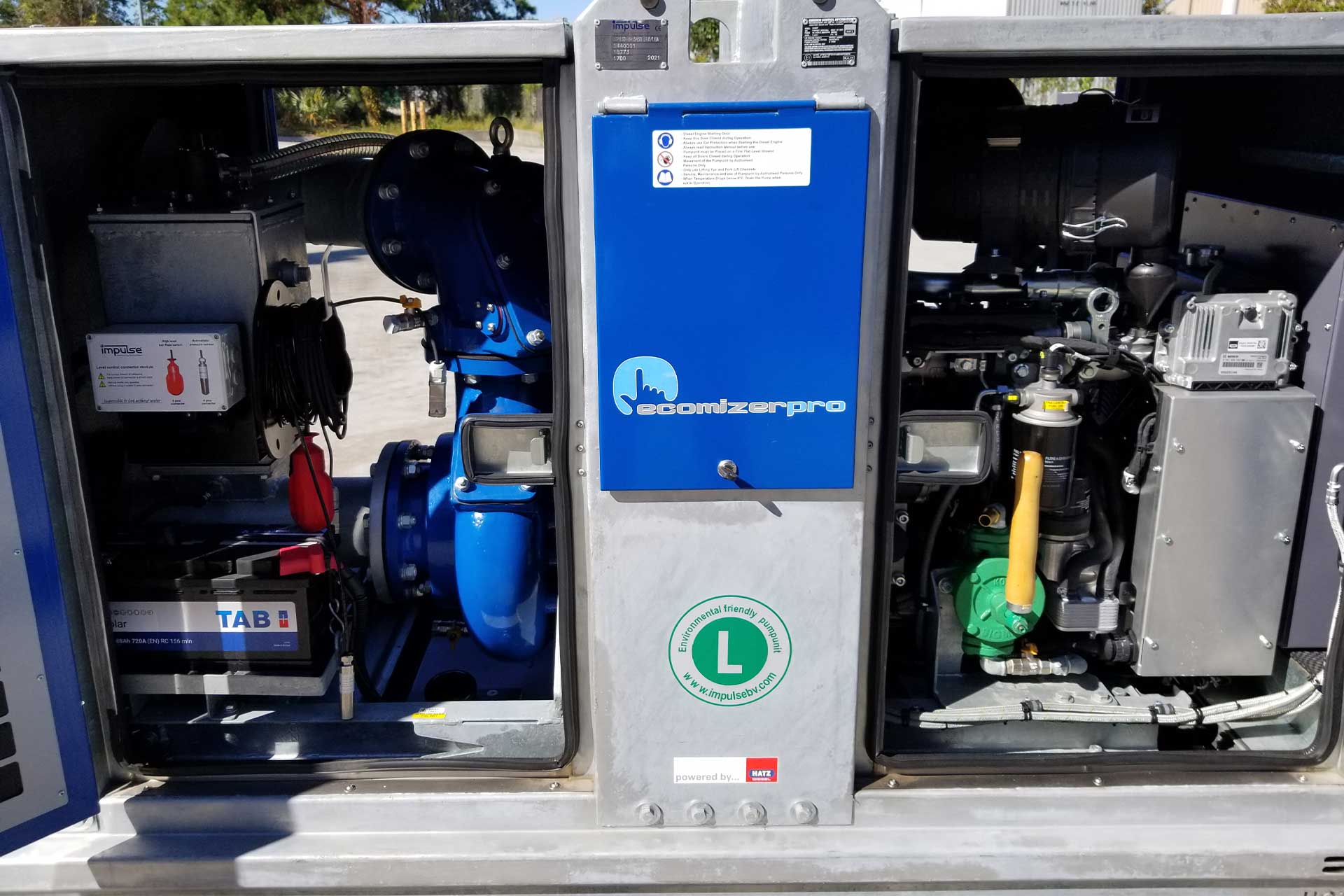

The design of this pump enables easy management, maintenance, and repairs. The pump’s Ecomizer Pro control system enables remote operation of the pump. Shim-free and “monobloc” design avoids any pump alignment requirements. All panels are removable convenient access points and adjustable wear plates. With useful forklift channels, this pump is also stackable up to 3 high.
The Ecomizer Pro control system also provides datalogging of pump and engine activities. Using a touchscreen, start-up requires just answering a few simple questions, and pumping is ready to go.
| SIP-6 | |
|---|---|
| Canopy dimensions (L x W x H) | 7.3 x 3.5 x 4.6 feet |
| Flange size discharge and suction | 6" - ANSI/DIN |
| Fuel tank (in leak-free tray) | 60 gallons |
| Dry weight | 3,780 pounds (1,700 kg) |
| Sound level | 58 dB at 23 feet |
| Max. flowrate | 1,650 gallons/minute |
| Max. discharge pressure | 100 feet |
| Max. speed | 1,800 rpm |
| Max. handling of solid particles | 3.5 inch diameter |
| Engine | Hatz 3H50T water-cooled EPA Tier 4 final |
| Controller | Ecomizer-Pro touch screen |
| Wear plates | Adjustable front and back cone |
| Seal | Double mechanical seal Tungsten/Tungsten |
| Warranty | 1-year or 2,500 hours for Hatz engine; 1-year on material and/or production failures |
