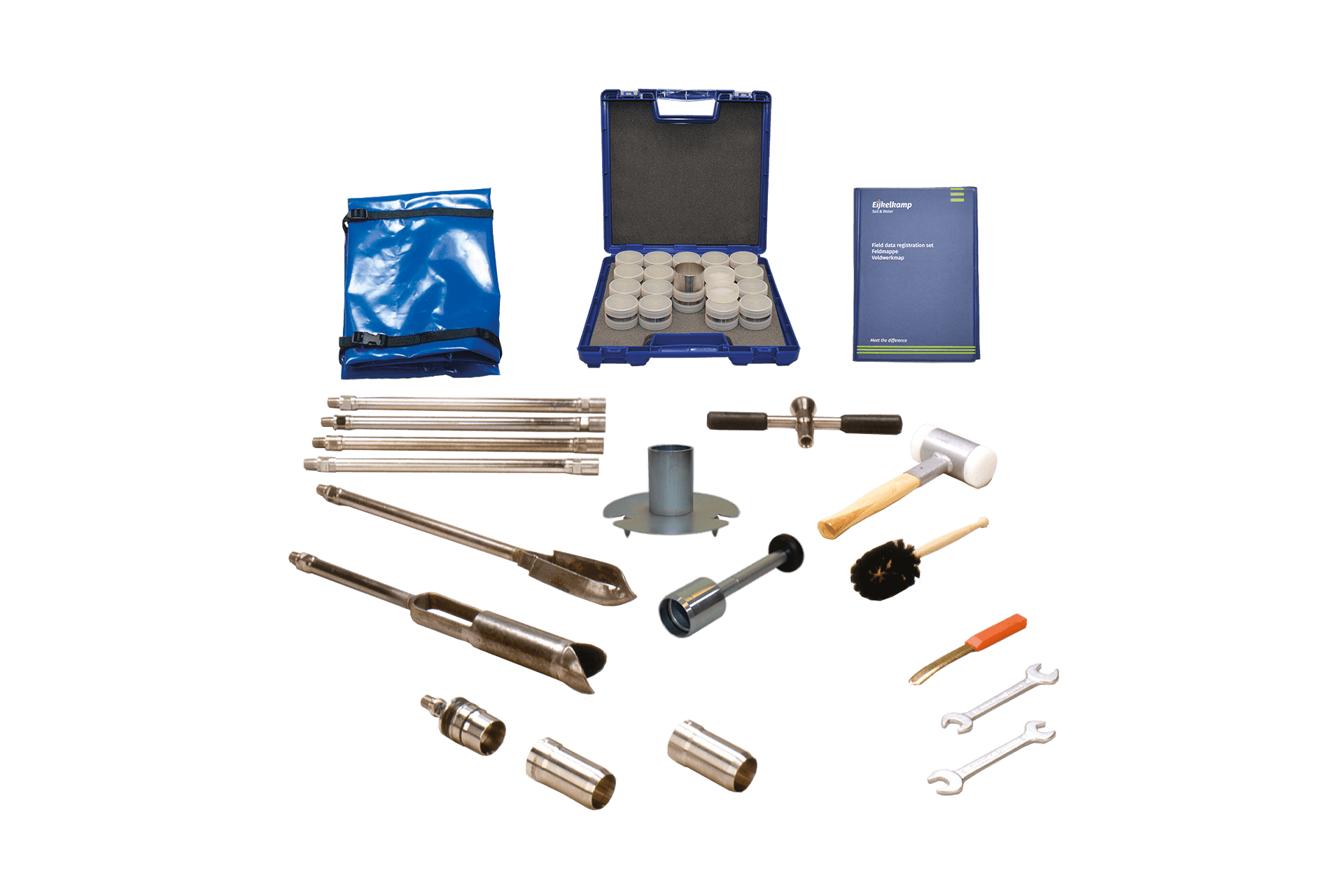

Soil sample ring kit C60, 60mm diameter
Soil sample ring kit C60, 60mm diameter

Soil sampling ring kit - model C60

07.60.SC

Sampling ring kit model C60 is a standard set to a depth of 6.5 feet (2 meters.) The kit is used for soil sample rings with a diameter of 2.4 inch (60 millimeters.) Soil sampling ring kits are used for a variety of tests, including bulk density determination of soil.

  • Standard set for a depth of 6.5 feet (2 meters)
  • Suitable for hammering
  • Soil sample rings Ø 2.4 inch (60 millimeters)
  • Sample ring protected by ring holder

Description

With this sample set, samples can be taken in virtually all types of soil to a depth of 6.5 feet (2 meters) with a diameter of 2.4 inch (60 millimeters.) The samples can be taken from the surface, from the bottom of auger holes or from soil profile pits, both above and below the groundwater level. This kit allows sampling at the surface and at depth.

The physical properties of soils are largely determined in the laboratory. Such studies usually require undisturbed soil samples, preferably with uniform dimensions. To meet these requirements, soil samples are taken in rings of a known volume and diameter.

Royal Eijkelkamp soil sample rings are made of seamless stainless-steel tube, smooth inside and out for as less as possible friction. The bottom of the ring has a cutting edge. The precise made dimensions and thus the volume content of the ring is exact, which makes it highly suitable for laboratory studies. There are other ring sizes available, and the Valve system is easy to clean.

Applications

The samples taken with this set, with a diameter of 2.4 inch (60 millimeters), are especially for use with the Compression test (08.67) and Shear/compression test apparatus (08.68)

  • Water permeability
  • Air permeability
  • Weight by volume
  • Density
  • The soil-water-air relationship at field capacity
  • The pore distribution
  • The oxygen diffusion
  • Determination of moisture content as various moisture tension levels, from which a pF-curve can be made

Set contains

  • Closed ring holder
  • Extension accessories with beating head
  • Edelman auger, type combination
  • Riverside auger
  • Hammering head for rings
  • Guide cylinder
  • Hammer with nylon tips, impact absorbing design
  • Case with 20 soil sample rings
  • Spatula
  • Field data registration set
  • Cleaning & maintenance material
  • Strong carrying bag

Specifications

Soil sampling ring kit - model C60
Connection N/A
Sample diameter 2.4 inch | 60 mm
Sample length 1.6 inch | 40.5 mm
Sample volume 7.9 fl oz | 235 ml
Sample specification Undisturbed
Sample stored in Container
Number of sample rings 20
Sample position Vertical
Package size 46 x 10.6 x 12.9 inch | 117 x 27 x 33 cm
Weight 68.3 lbs | 31 kg
