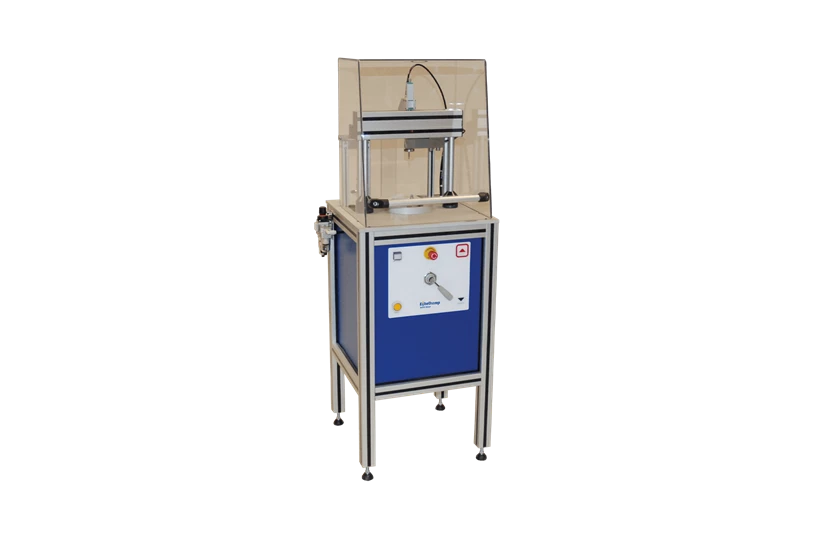

The compression test apparatus measures the impact of vertical stress on an undisturbed soil sample. During the measurement the soil water matrix, compression stress and vertical displacement are measured simultaneously.
This apparatus applies pressure from the top for a fixed amount of time and measures how the soil responds. It operates fully automatic, and under computer control, using multifunctional software for executing set measurement protocols and both numerical and graphical visualised data presentation. All measured parameters are logged.
The samples are taken in a soil sample ring Ø 103 x 100 mm, height 30 mm, contents 235 cc.
Applications
The apparatus was developed in cooperation with Christian Albrechts University Kiel in Germany, a leading institution in soil compaction research. Read the interview with Prof. Horn of Kiel University for more information.
| Compression test apparatus set | |
|---|---|
| Stress vertical | 0-600 kPa |
| Response speed | 10 sec. @1% end value (adaptable by PID controller parameters) |
| Soil matric potential | -1000...+1000 hPa |
| Compression | 0-30 mm |
| Soil sample diameter | 100 mm |
| Pressure-in max. | 0.7 Mpa / 7bar |
| Mains supply | 100-250 VAC |
| Temperature and humidity | 15-35 ºC / 20-80% RH (non condensing) |
| Dimensions | 45 x 45 x 125 cm |
