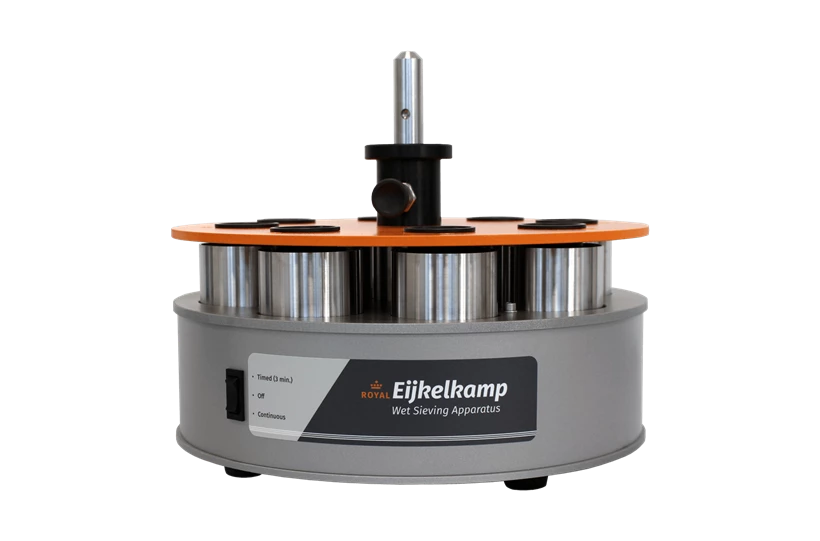

Wet sieving apparatus


Complete set for the wet sieving method, to determine the aggregate stability of soil. This provides valuable insights into the sensitivity of soils to water and wind erosion

  • Works with simple disturbed samples
  • 8 inert beakers allow for the use of chemicals
  • Pre-programmed grain-wash time
  • Determines the susceptibility to (splash) erosion
  • Sieve out the grains from 0.04 to 0.079 in (1.00 to 2.00 mm)
  • The grains falling apart are measured


Aggregate stability research

The wet sieving apparatus is used to determine aggregate stability. Wet aggregate stability is determined on the principle that unstable aggregates will break down more easily when immersed into water than stable aggregates. 8 sieves (with 60 mesh screen) are filled with a certain amount of soil aggregates and placed in a can filled with water. The can moves up and down for a fixed time. The unstable aggregates will fall apart, pass through the sieve, and are collected in the water-filled can underneath the sieve.

After this fixed time, the cans are removed and replaced by new water-filled cans. Now, all aggregates are destroyed. Sand grains and plant roots will remain on the sieve and only aggregates are considered. After drying the cans with the aggregates, the weight of both stable and unstable aggregates can be determined.

Dividing the weight of stable aggregates over total aggregate weight gives an index for the aggregate stability.

The standard set includes:

  • Shaking machine for wet sieving method (incl. 100-240 VAC 50/60Hz adapter)
  • 8 sieves of 1.54 inch (39 mm) diameter with sieve openings of 0.01 in (0.250 mm) and a sieve surface of 4.02 in (10.2 cm)
  • Stainless steel sieve cans with a diameter of 2.5 in (64 mm)

Optional: sieves with various openings of 0.079 - 0.0018 in (2.0 - 0.045 mm) and electronic pocket balance.


  • Soil physical laboratory research
  • Erosion research
  • Soil stability research


Wet sieving apparatus
Maximum number of samples 8
Measured parameters Aggregate stability
Measuring range 0 - 100%
Reading accuracy Depending on weighing equipment
Sample specification disturbed
Voltage 110 - 240VAC 50/60Hz
