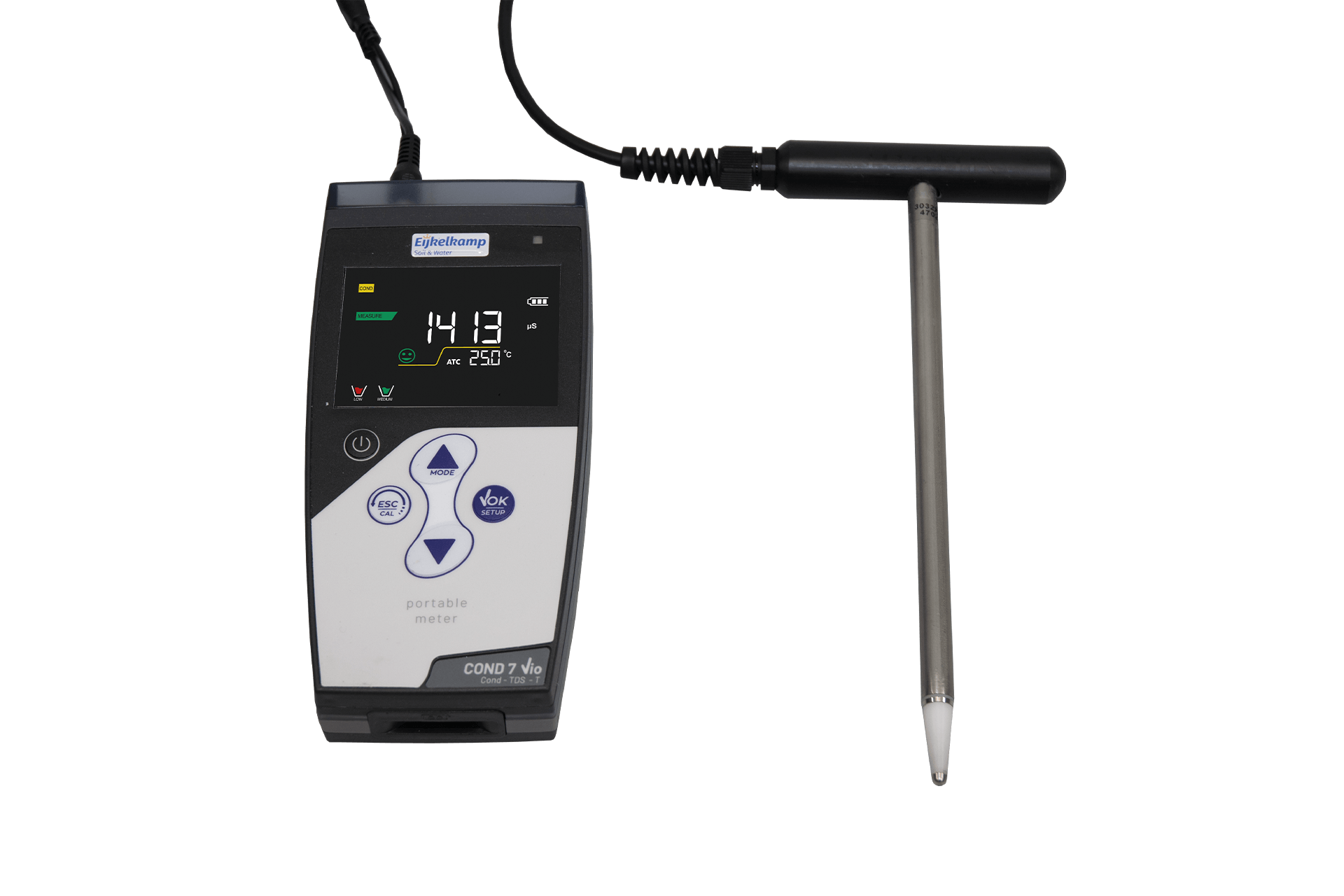

This professional and portable conductivity meter has an innovative high-resolution color display. The Electrical Conductivity (EC) meter is ideal for taking measurements in the field.
This Electrical Conductivity (EC) meter is a portable and user-friendly instrument to measure EC in the field. The onboarding guide in setup and calibration mode allows a simple and intuitive use of the device. The EC is an indication of the amount of salts dissolved in water. As the concentration of salt may be a limiting or stimulating growth factor, or an indication of soil pollution, it is essential to establish the EC.
The EC meter features automatic calibration of conductivity to 5 points and 1 point defined by the user. Reference temperature and selectable cell constant are easy to set. The meter is equipped with an indicator of the stability of the measurement and possibility to select 3 stability levels.
All operations and errors are constantly monitored and shown to the operator via the colored LED above the display. The VPT Soil conductivity cell with built-in temperature sensor, C=1, for ground measurement, 4.9 foot (1.5-meter-long) fixed cable with BNC and Cinch connector. Field 10μS-50 mS.
Applications
Set contains
| EC meter set for soil | |
|---|---|
| Measuring range pH | 0.00 - 14.00 (0.1 - 0.01pH) |
| Measuring range mV | 1000 - +1000 (1 mV) |
| Measuring range EC | meter: 0.1 μS - 200 mS (0.01 μS) | sensor: field 10μS - 50μS |
| Measuring range TDS | 0.01 mg/l - 200.0 g/l |
| Measuring range temperature | meter: 32 - 212°F with 0.2°F accuracy | sensor: 32 - 140°F / meter: 0 - 100°C with 0.1°C accuracy | sensor: 0 - 60°C |
| Power supply | battery, PC, mains |
| Sensor measuring range EC | Field 10μS ... 50 mS. |
| Sensor measuring range temperature | 32 ... 140°F (0 ... 60°C) |
| Filename |
|---|
| Brochure 18.8- EC Ph Meters |
