Edelman hand bailer auger set, bayonet connection
Edelman hand bailer auger set, bayonet connection

Hand bailer auger set - bayonet connection, standard


Bailer auger set for hand-operated augerings, as well as the installation of sampling and monitoring wells, up to 23 feet depth (7 meter) in heterogeneous soils.

  • Augering up to 23 feet depth (7 meter)
  • Bayonet connection allows fast and simple exchange of rods and auger heads
  • Installation of sampling and monitoring wells at shallow depths
  • Soil profile description and classification
  • Soil sampling above and below groundwater table in cohesive soils


The hand operated bailer auger set comprises a 23-inch (60 centimeters) handle with synthetic, detachable grip and different auger types with a diameter of 3 and 4 inch (7 and 10 centimeters.) All with a bayonet connection.

This auger set is used to carry out manual drilling, sampling, and investigation (e.g., soil horizon, geology, and archaeology) in a variety of soils. The casing tubes prevent the borehole from collapsing during drilling under the groundwater level or in non-cohesive soils. The bailer makes it possible to collect and remove loose material by moving it rapidly up and down. The auger can be extended with more rods and casings and can be combined with the longer piston sampler.


  • Soil profile description and classification
  • Soil sampling above groundwater table
  • Soil sampling below groundwater table
  • Environmental soil research
  • Monitoring well installation
  • Geohydrological research

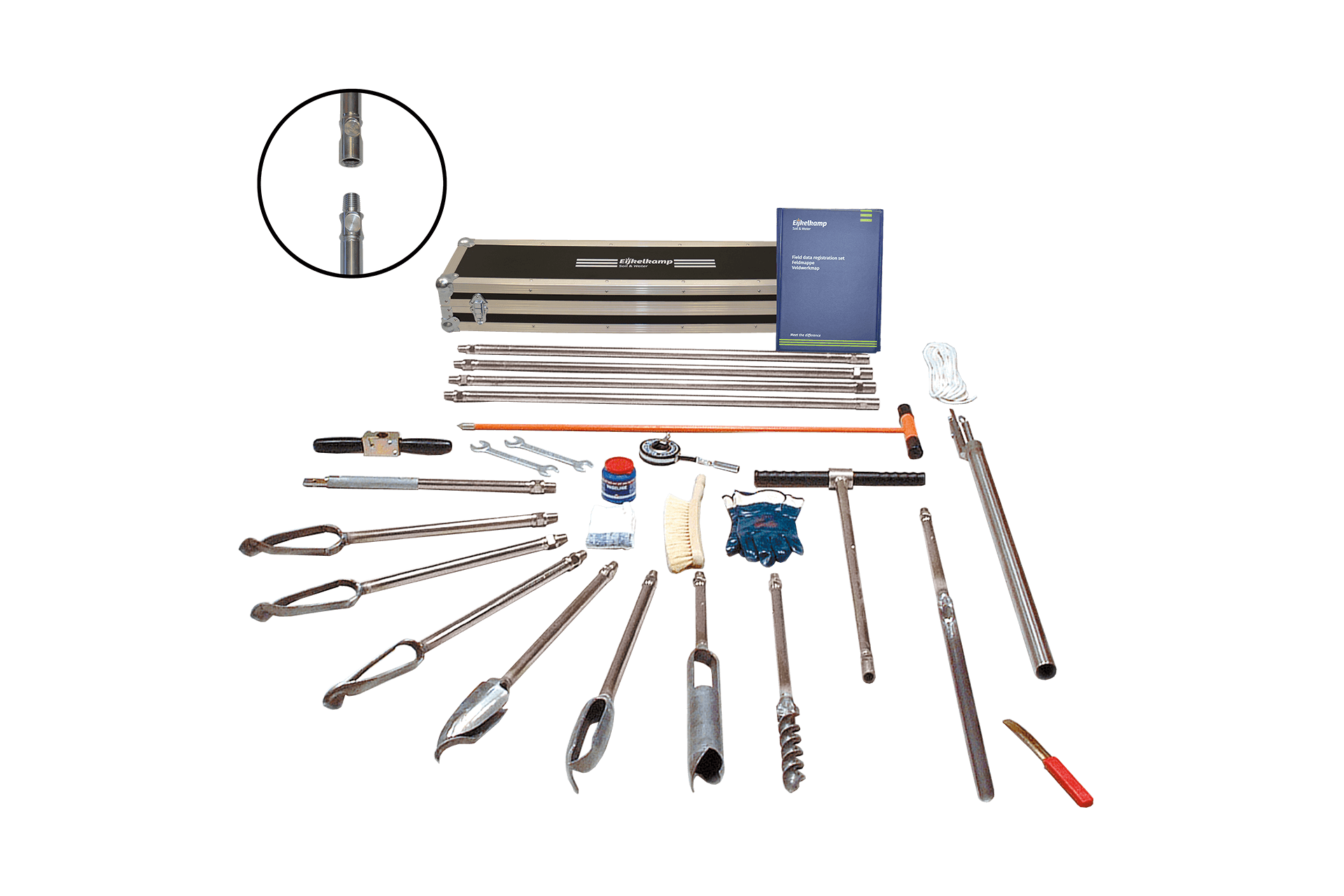

Set contains

  • Various types of soil augers to reach groundwater level
  • Augers for extraction of less-disturbed soil samples
  • Extension rods
  • Augering handle
  • Synthetic casing tubes with steel screw thread sockets
  • Tube clamps
  • Bailers
  • Casing tube platforms for more ergonomic working space
  • Spare parts
  • Various accessories
  • Aluminum transport cases


Hand bailer auger set - bayonet connection, standard
Connection Bayonet
Drilling diameter 3 + 4 inch | 7 + 10 cm
Maximum sample depth 23 feet | 7 m
Product material Iron, PVC, other material
Sample length 4 inch | 10 cm
Sample specification Disturbed
Sampler position Vertical
Package size 48 x 31 x 30 inch | 120 x 80 x 75 cm
Weight 330 lbs | 150 kg
