Core Cutter RAW Set
Core Cutter RAW Set

Sample ring kit - core cutter method, test 4.4


Sample ring kit especially designed to comply to the Dutch RAW standard, mainly used for civil engineering construction. Sample diameter 3.8 inch.

  • Takes very large undisturbed samples
  • Stainless steel cutting rings
  • Used for density measurements and others


This method is used for the determination of the density and the soil moisture content of embankment- or foundation material.

With a drop weight and a guide cylinder, a special stainless steel sample ring with a diameter of 3.7 x 0.47 inch (95.7 x 12 millimeters) and a height of 3.2 inch (81.5 millimeters), is hammered into the soil surface. The density and soil moisture content of the sampled material can then be determined in the laboratory.


  • Undisturbed sampling
  • Soil sampling above groundwater table
  • Geotechnical soil research
  • Laboratory soil density measurements
  • Determination of moisture content

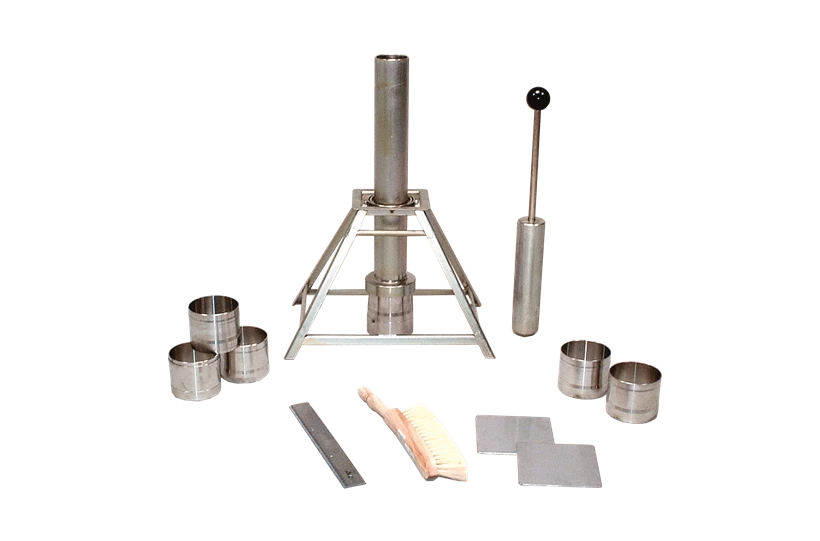

Set contains

  • Stainless-steel sample rings for non-cohesive materials (3 pieces)
  • Stainless-steel sample rings for cohesive materials (3 pieces)
  • Insertion set with drop weight of 13.2 lbs. (6 kilograms)
  • Cutting tools
  • Cleaning brush


Sample ring kit - core cutter method, test 4.4
Connection N/A
Sample diameter 3.8 inch | 95.7 mm
Sample length 3.2 inch | 81.5 mm
Sample specification Undisturbed
Sample stored in Itself, rings
Sample volume 20 fl oz | 586 ml
Sample position Vertical
Package size 23.6 x 15.7 x 14.9 inch | 60 x 40 x 38 cm
Weight 68.3 lbs | 31 kg
