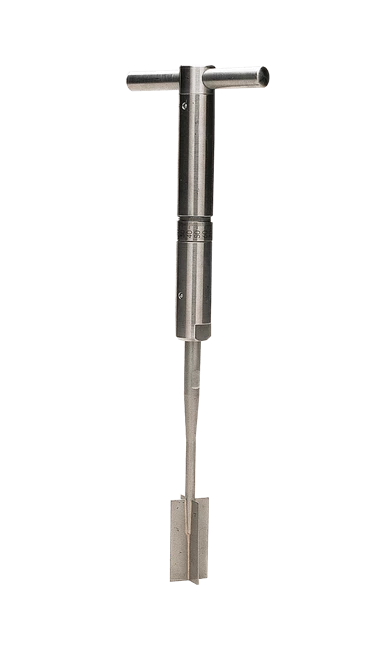

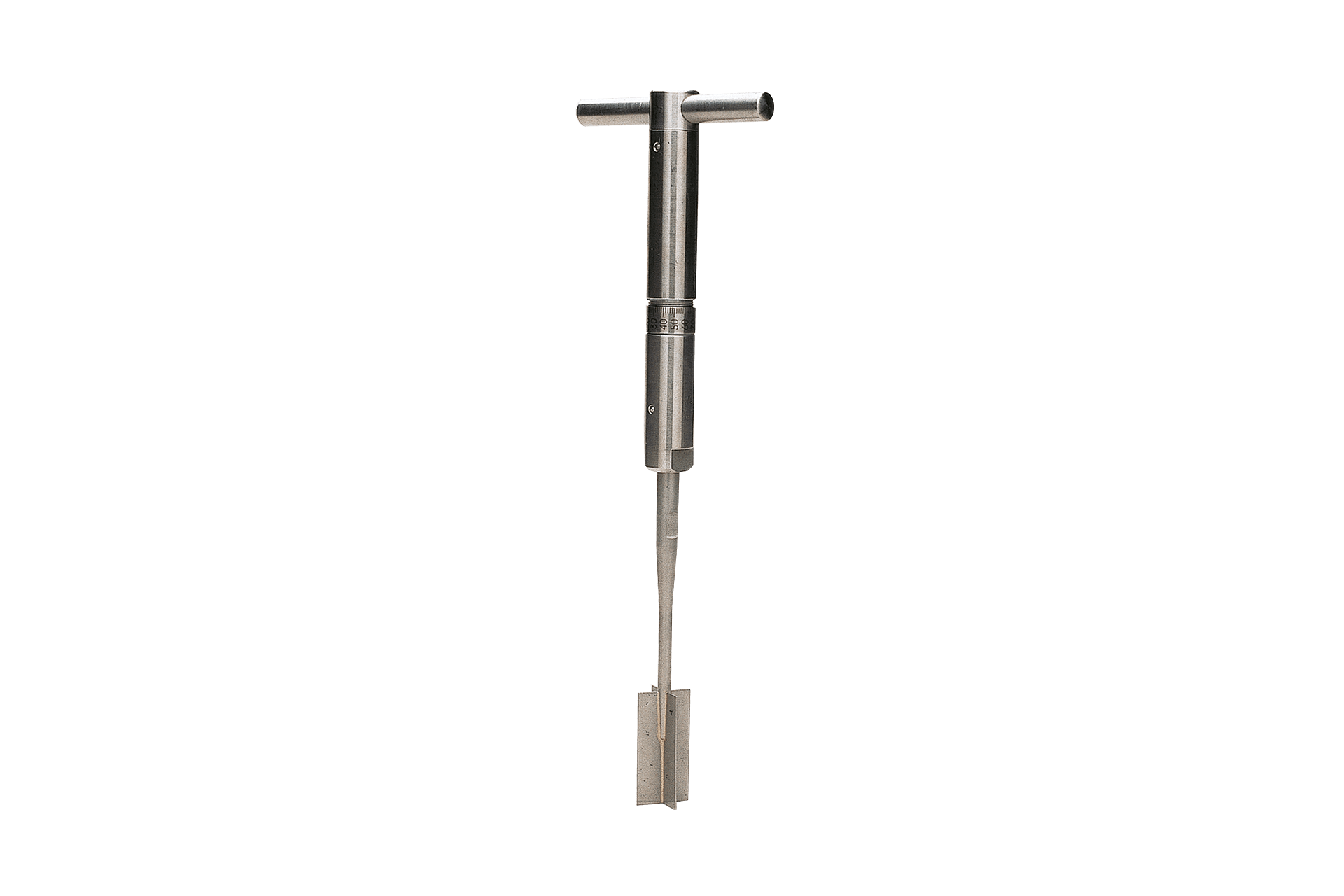

Field inspection vane tester

Description

The Royal Eijkelkamp field inspection tester can be used to measure the maximum shear force that can be applied to a soil. Measurement is possible in the field, on the surface, in profile pits, or on the bottom of boreholes, as well as on samples in the laboratory.

The shear stress measured can be read on a clearly readable scale ring. In soft soils it is not necessary to make a borehole first; in order to determine the friction on the extension rods, a dummy vane is available in these situations.

Applications

• Civil construction
• Geotechnical engineering
• Lab and in-situ testing soil and soil parameters

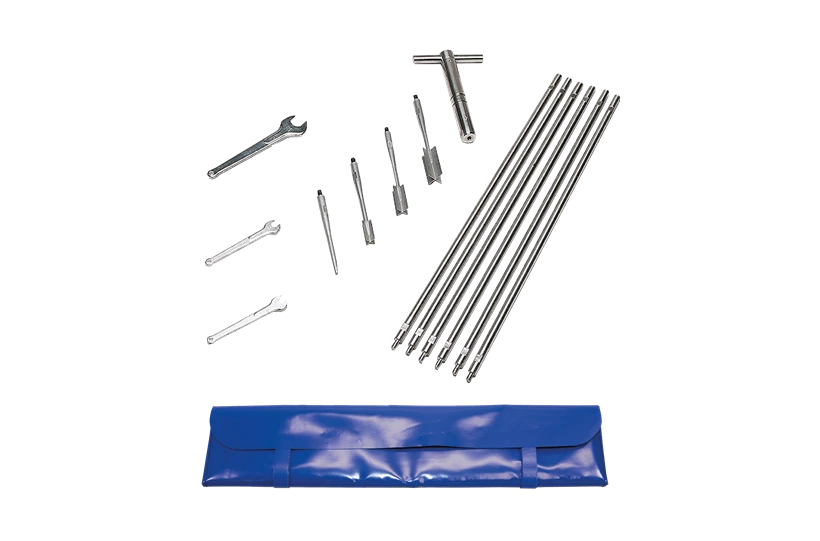

Set contains

• Field inspection vane tester to 200 kPa (20 t/m²)

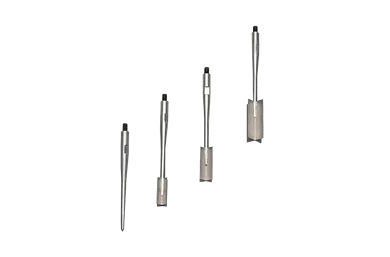

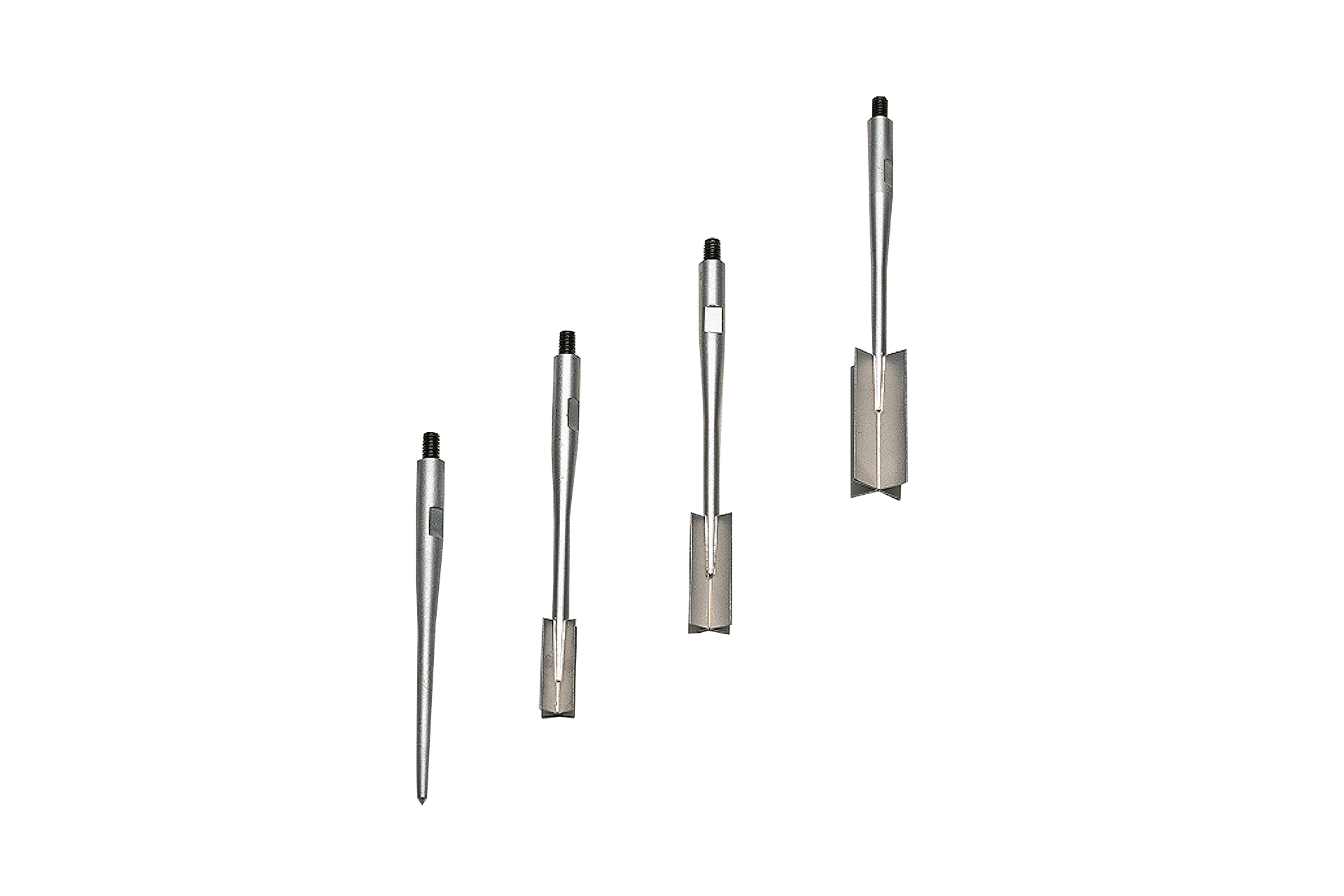

• Vanes (3 pieces) : 0.62 x 1.25 inch (16 x 32 millimeter) (KPa 0-260, coefficient 2,6), 0.78 x 1.57 inch (20 x 40 millimeter) (KPa 0-130, coefficient 1) and 1 x 2 inch  (25.4 x 50.8 millimeter) (KPa 0-65, coefficient 0,65)
• Dummy vane
• Extension rods and carrying bag are separately available
