Combination Edelman auger

Variations available

Edelman auger Combination type, specially designed for use in both sandy and clayey soils. Available as one-piece auger or bottom part with various diameters and connections.

  • High tensile strength forged auger bodies
  • Perfect auger body shapes for optimal drilling
  • Non toxic steel for all types of analyses
  • Rapid connectible extension rods

Description

The combination type auger gets a reasonably good hold of sandy material, while clayey material can be fairly easily removed from the auger body. The best of for both (or more) worlds!

Augers should be left to air-dry after use and decontaminated with soaps. Rust will naturally appear on these augers, read the brochure for more information.

Availability

This auger is available in various diameters and connections.

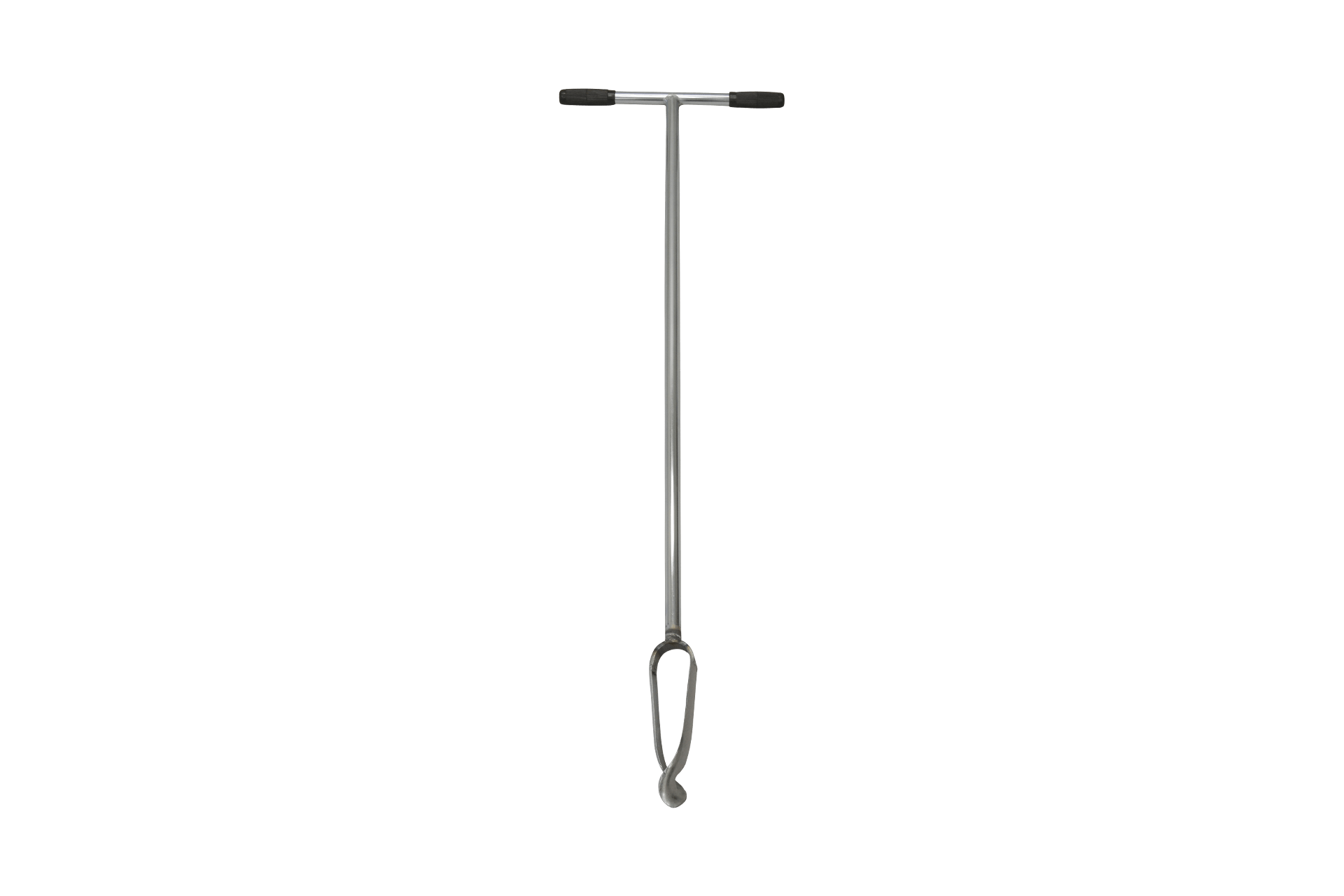

One-piece augers
01.01.02.04.1
Diameter 1.6" (4 cm)
01.01.02.05.1
Diameter 2" (5 cm)
01.01.02.06.1
Diameter 2.4" (6 cm)
01.01.02.07.1
Diameter 2-3/4" (7 cm)
01.01.02.08.1
Diameter 3.2" (8 cm)
01.01.02.10.2
Diameter 3.9" (10 cm)
01.01.02.12.2
Diameter 4.7" (12 cm)
01.01.02.15.2
Diameter 5.9" (15 cm)
01.01.02.20.2
Diameter 7.9" (20 cm)

Bayonet connection bottom parts
01.02.02.04.B
Diameter 1.6" (4 cm)
01.02.02.05.B Diameter 2" (5 cm)
01.02.02.06.B Diameter 2.4" (6 cm)
01.02.02.07.B Diameter 2-3/4" (7 cm)
01.02.02.08.B Diameter 3.2" (8 cm)
01.02.02.10.B Diameter 3.9" (10 cm)
01.02.02.10.HB Extra hardened, diameter 3.9" (10 cm)
01.02.02.12.B Diameter 4.7" (12 cm)
01.02.02.15.B Diameter 5.9" (15 cm)
01.02.02.20.B Diameter 7.9" (20 cm)
01.02.02.45.B Diameter 17.7" (45 cm)

Conical screw thread connection bottom parts
01.02.02.04.C Diameter 1.6" (4 cm)
01.02.02.05.C Diameter 2" (5 cm)
01.02.02.06.C Diameter 2.4" (6 cm)
01.02.02.07.C Diameter 2-3/4" (7 cm)
01.02.02.08.C Diameter 3.2" (8 cm)
01.02.02.10.C Diameter 3.9" (10 cm)
01.02.02.12.C Diameter 4.7 (12 cm)
01.02.02.15.C Diameter 5.9" (15 cm)
01.02.02.20.C Diameter 7.9" (20 cm)

Square connection bottom parts
01.02.02.07.V Diameter 2-3/4" (7 cm)
01.02.02.08.V Diameter 3.2" (8 cm)
01.02.02.15.V Diameter 5.9" (15 cm)
01.02.02.20.V Diameter 7.9" (20 cm)

Ergonomic handle bottom parts
01.02.02.07.BE
Bayonet connection, diameter 2-3/4" (7 cm)
01.02.02.07.BK Bayonet connection, diameter 2-3/4" (7 cm)

Specifications

Combination Edelman auger
Connection types Screw thread, bayonet, square
Sample diameter 1.6 -18 inch | 4-45 cm
Sample specification Semi-disturbed
Product material Iron, other
