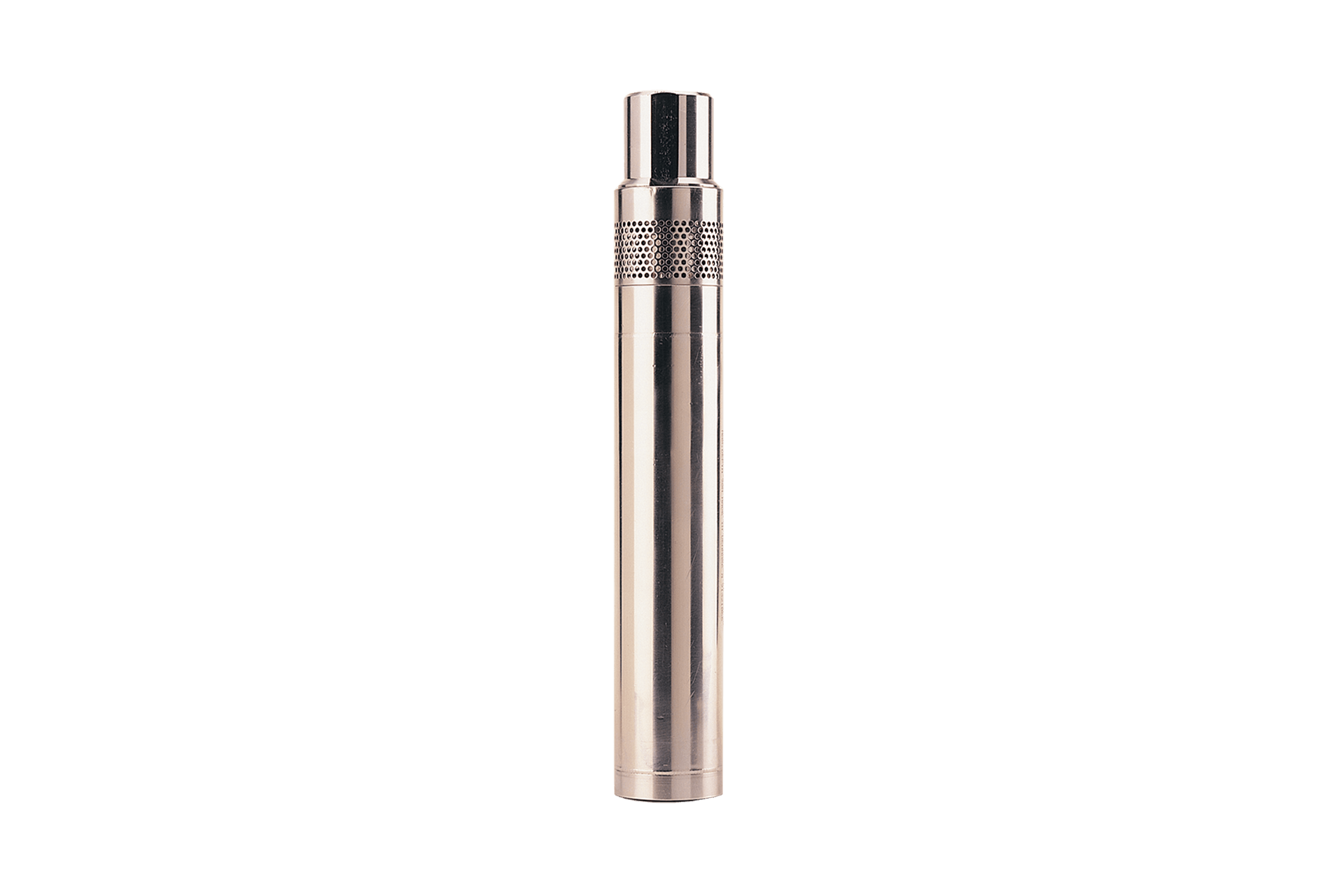

Submersible MP1 pump part in detail
Submersible MP1 pump used in the field
Do you want to allow cookies?

Please accept cookies to view this content

Edit cookie settings

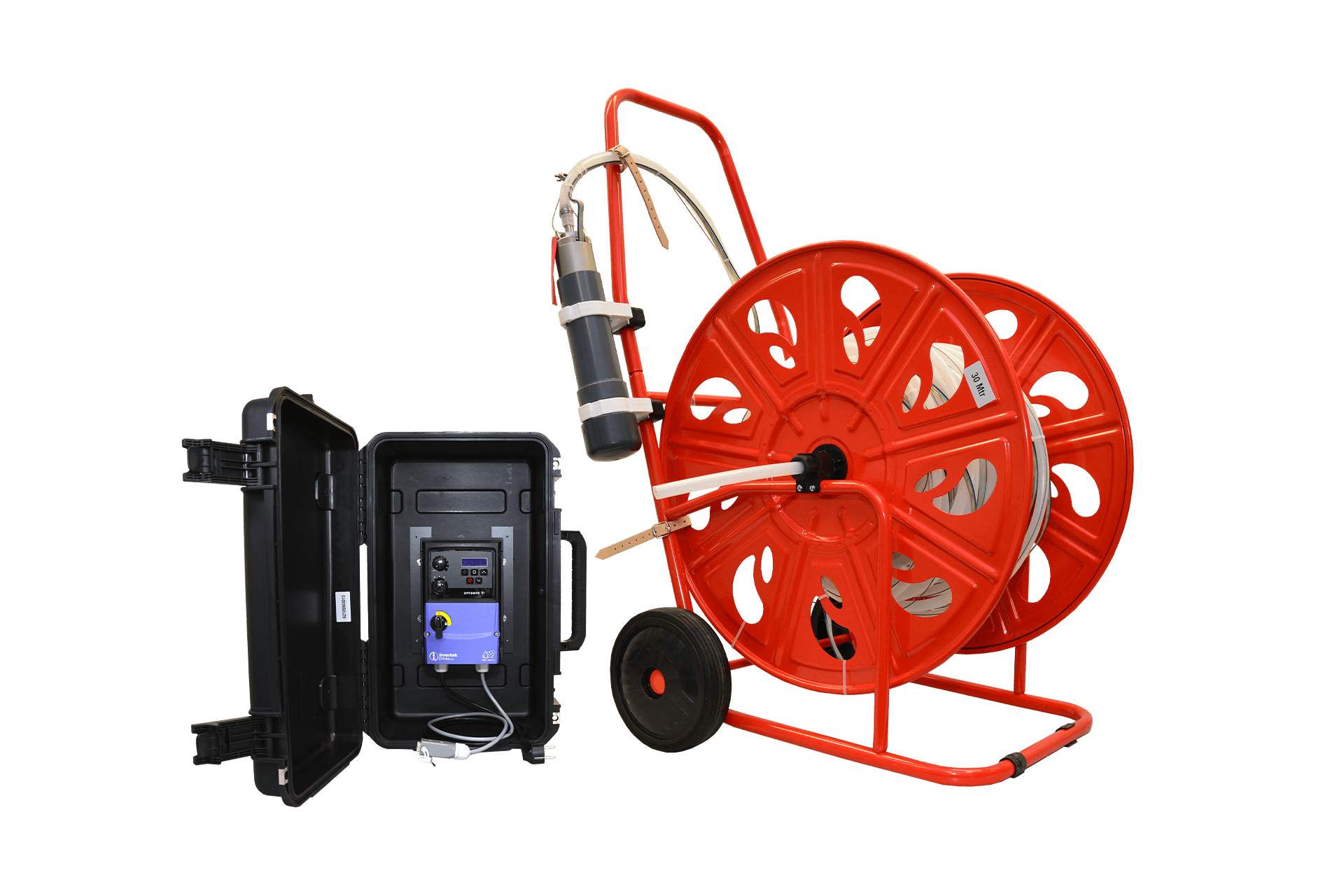

Submersible MP1 pump set
Submersible MP1 pump used in the field
Do you want to allow cookies?

Please accept cookies to view this content

Edit cookie settings

MP 1 submersible pump


This submersible pump set is suitable for sampling of monitoring wells of 30, 60 or 90 metres depth. It can be used for both purging and sampling of even narrow (50 mm or 2 inch in diameter ) monitoring wells.

  • Resistant against corrosive fluids
  • Speed (flow) regulated by included frequency converter
  • High top capacity for purging
  • Smooth flow for sampling


The MP 1 / Redi-Flo2 submersible pump is specially designed for purging and sampling of monitoring wells. Originally designed by Grundfos, Royal Eijkelkamp is now exclusive manufacturer of this unique groundwater pump.

It’s the only pump in the world which can lift water up to 90 m above water level within a well with a diameter as small as 50 mm (2 inch)!

This pump can be delivered with a re-usable PTFE tube, a low-cost LDPE tube, or no tube.

The high capacity of this pump allows for quick purging of the measuring point. By setting a low pumping capacity the same pump can be used for sampling. The pump housing is completely made of stainless steel, which helps prevent contamination of the sample.

The pump motor is controlled by an adjustable frequency converter. Thanks to the variable setting of the frequency, the capacity of the pump can be adjusted from 0 to 2m3 /hour. This results in a steady flow of anaerobe water.

Every measurement point must be purged before samples can be taken. The large capacity of the MP 1 pump ensures that the measuring point is quickly purged. By setting it at a lower pumping capacity, the MP 1 can also be used for sampling.

Built-in safeguards protect the MP 1 and the converter against overload. The actual frequency can be read from a display.


  • Anaerobe sampling
  • Purging and sampling of monitoring wells
  • Maximum lift of 90 metres of water

Available variants

  • 12.27.SF PTFE tube, 30 metres
  • 12.27.SG PTFE tube, 60 metres
  • 12.27.SH PTFE tube, 90 metres
  • 12.27.SL LDPE tube, 30 metres
  • 12.27.SM LDPE tube, 60 metres
  • 12.27.SN LDPE tube, 90 metres
  • No tube

Set contents
The set is delivered fully assembled and contains:

  • Submersible pump MP 1
  • Cooling jacket
  • Frequency converter
  • Tube option of choice
  • Cables
  • Hose reel cart
  • Service kit


MP 1 submersible pump
Power input 1.3kW
Voltage 3 x 220 V 400 Hz
Maximum current 5.5 A
Motor protection Built-in thermal switch
Water temperature 0 °C to +35 °C
Discharge port Rp 3/4
Continuous operation 500 hours
Package size 120 x 80 x 100 cm | 47.2 x 31.4 x 39.3 inch
