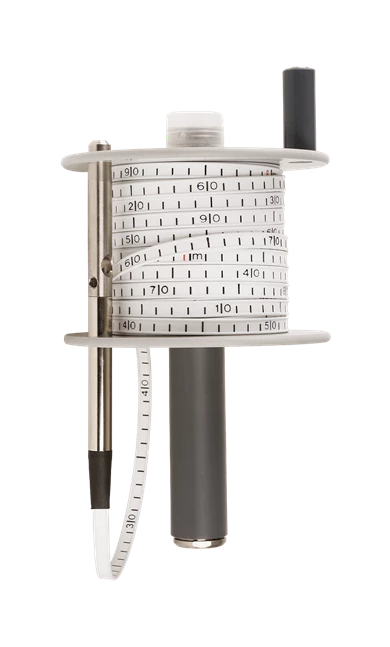

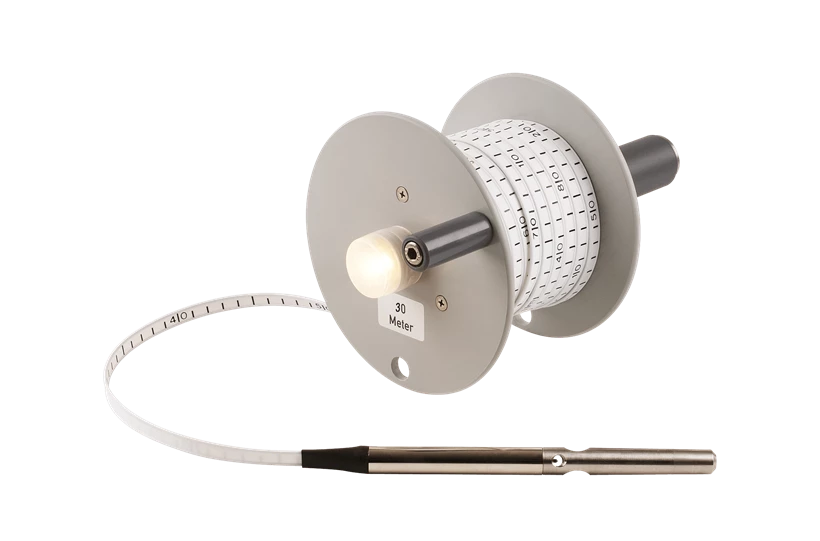

Water Level Meter 30M
Water Level Meter 30M

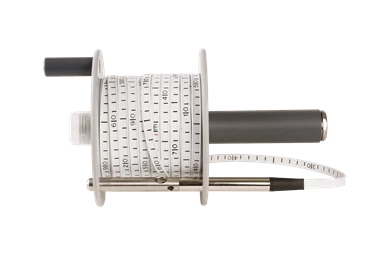

Water Level Meter 30M Probe
Water Level Meter 30M
Water Level Meter 30M
Water Level Meter 30M Probe

Water level meter


This Water level meter with acoustic and light signal is compact and robust. It is used for measuring the water level and is available in three different lengths: 15, 30, 50 metres.

  • Mobile device for fast, easy and solid measurement of the water level
  • Easy to carry
  • Small stainless steel electrode of Ø 15 millimetres
  • Easy to clean


The water level meter is part of the standard equipment for measuring the groundwater level. It is provided with a stainless steel probe, which is connected to a measuring tape with centimetre graduation. This compact version is characterised by its robust design and favourable price. Its low weight and slim design make it easy to transport.

When the probe touches a conductive liquid, it will emit clear acoustic and light signal. Once the cable is then slightly lifted, the signal will stop and the depth reading can be done directly from the measuring tape (accuracy: ± 1 centimetre).

Available variations

  • 11.03.41 Range 15 metres
  • 11.03.42 Range 30 metres
  • 11.03.43 Range 50 metres


  • Water level measurements of electrically conducting liquids in boreholes, wells and tanks (in ATEX-free zones only)
  • Long-term observations for periodic level soundings
  • Continuous water level registration during pumping tests
  • Additional sounding of well depths using the bottom sensor (accessory)
  • Geohydrological research
  • Water quantity research


Water level meter
Diameter (D) and /or size (L*W*H) Sensor D 15 mm, L 195 mm
Measured parameters Level
Measuring principles Conductivity
Power suply Battery, 4x 1,5 volt DC (AA) with 2 years lifetime
Product material Stainless steel and electroplated brass (easy to clean)
Safety class for probe IP 68, permanently pressure resistant
Safety class measuring tape IP 64, spray water resistant
Reading accuracy 1 cm
Registration type Manual
Recommended storage temperature +5 °C up to +30 °C, for battery protection
Package size 34 x 22 x 23 or 39 x 35 x 35 cm
Weight 2,1 or 3 or 5 kg
