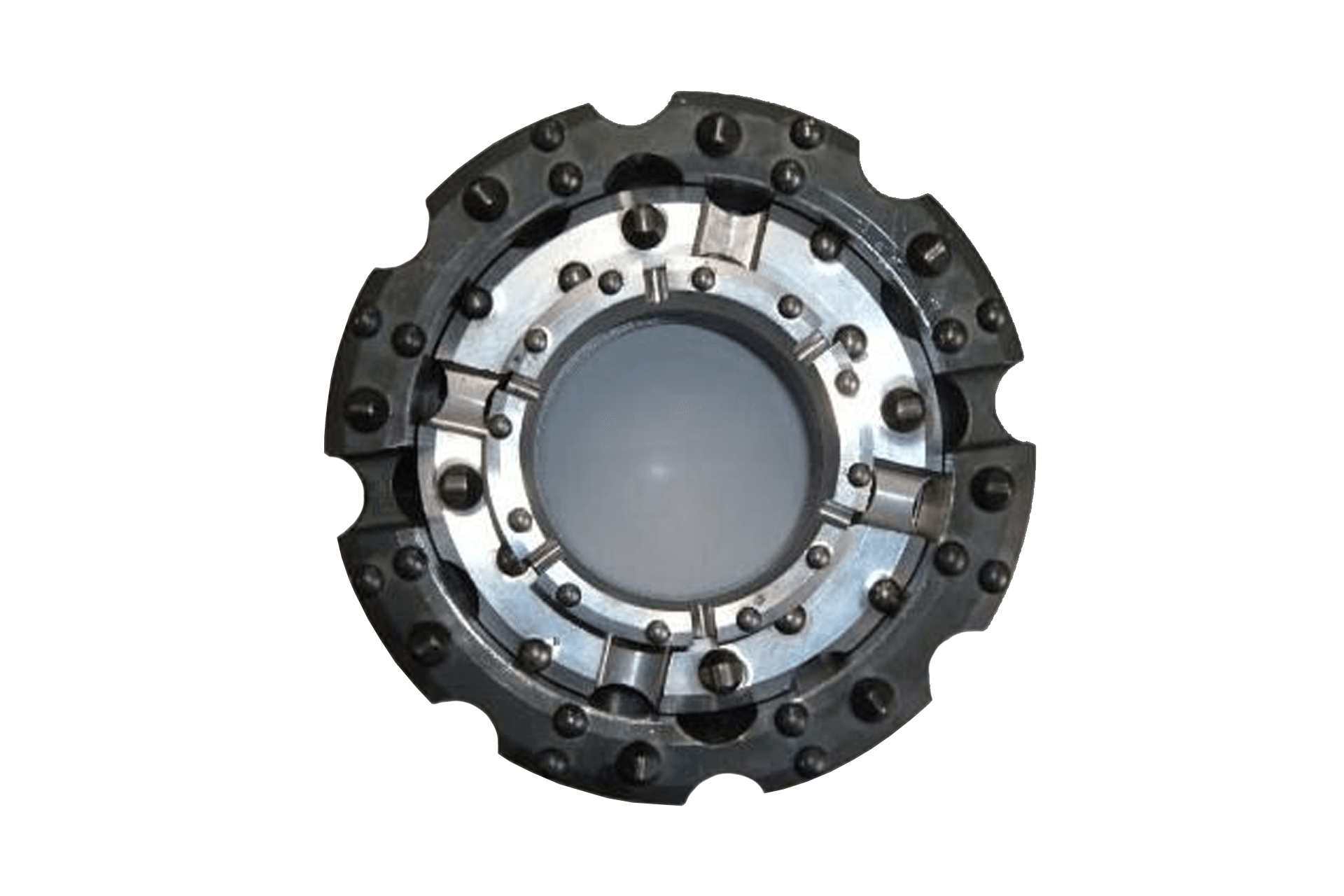

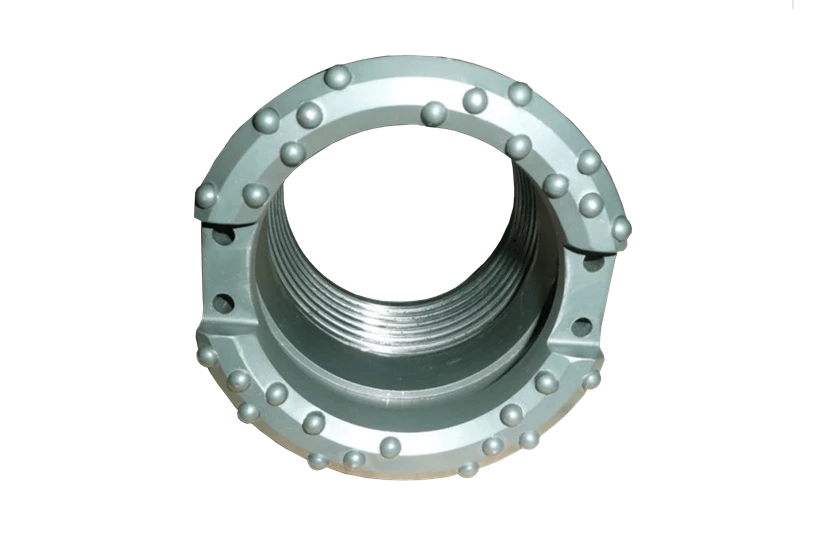

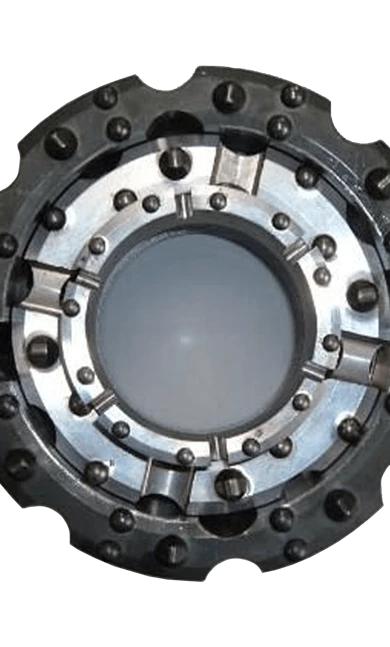

SingleWall CoreBarrel Samplers

Article description

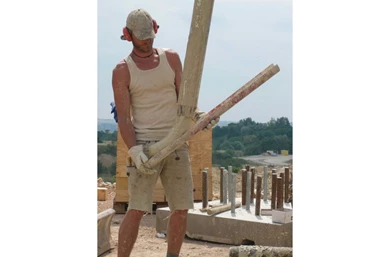

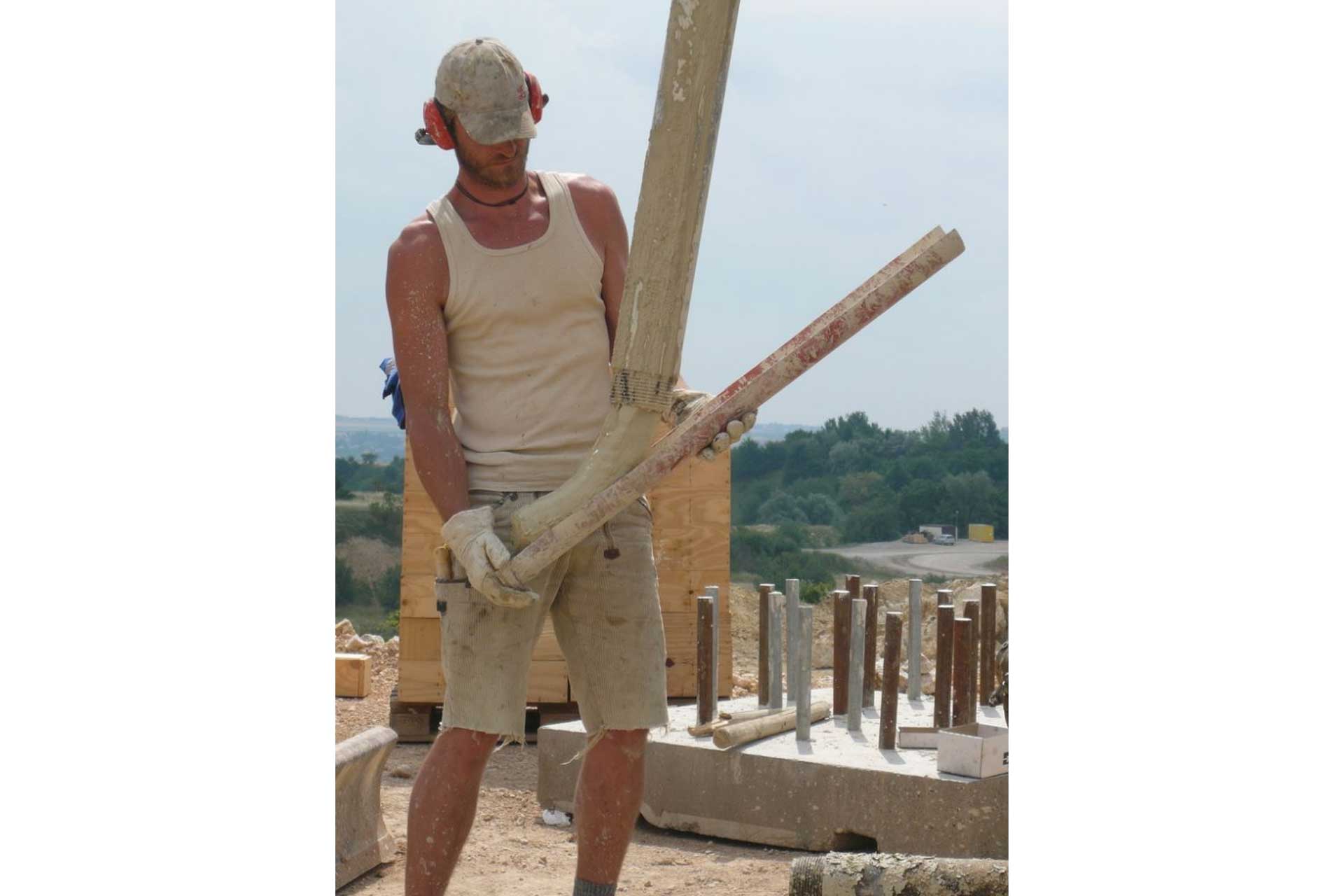

The SingleWall CoreBarrel sampler is designed to take high quality samples in a broad spectrum of formations. It will work best in harder alluvial and mixed formations. It can even handle small boulders and hard layers. Sampling is performed dry. A casing makes sure that the borehole does not collapse when retracting the sampler. Cores can be sampled straight in the core barrel or directly into a liner. The sample can be extruded into polyethylene foil tube, plastic gutters, or a core box.

The SingleWall CoreBarrel Samplers is now available in different diameters and lengths. You can get the following sizes from us:

• SingleWall CoreBarrel sampler 55 = 2.1 in x 78.7 in (53 mm x 2.000 mm)
• SingleWall CoreBarrel sampler 105 = 3.94 in x 118.1 in (100 mm x 3.000 mm)
• SingleWall CoreBarrel sampler 130 = 4.92 in x 118.1 in (125 mm x 3.000 mm)

For all specifications, please download the specification sheet or contact our expert.
