MITO 25 DR - now available

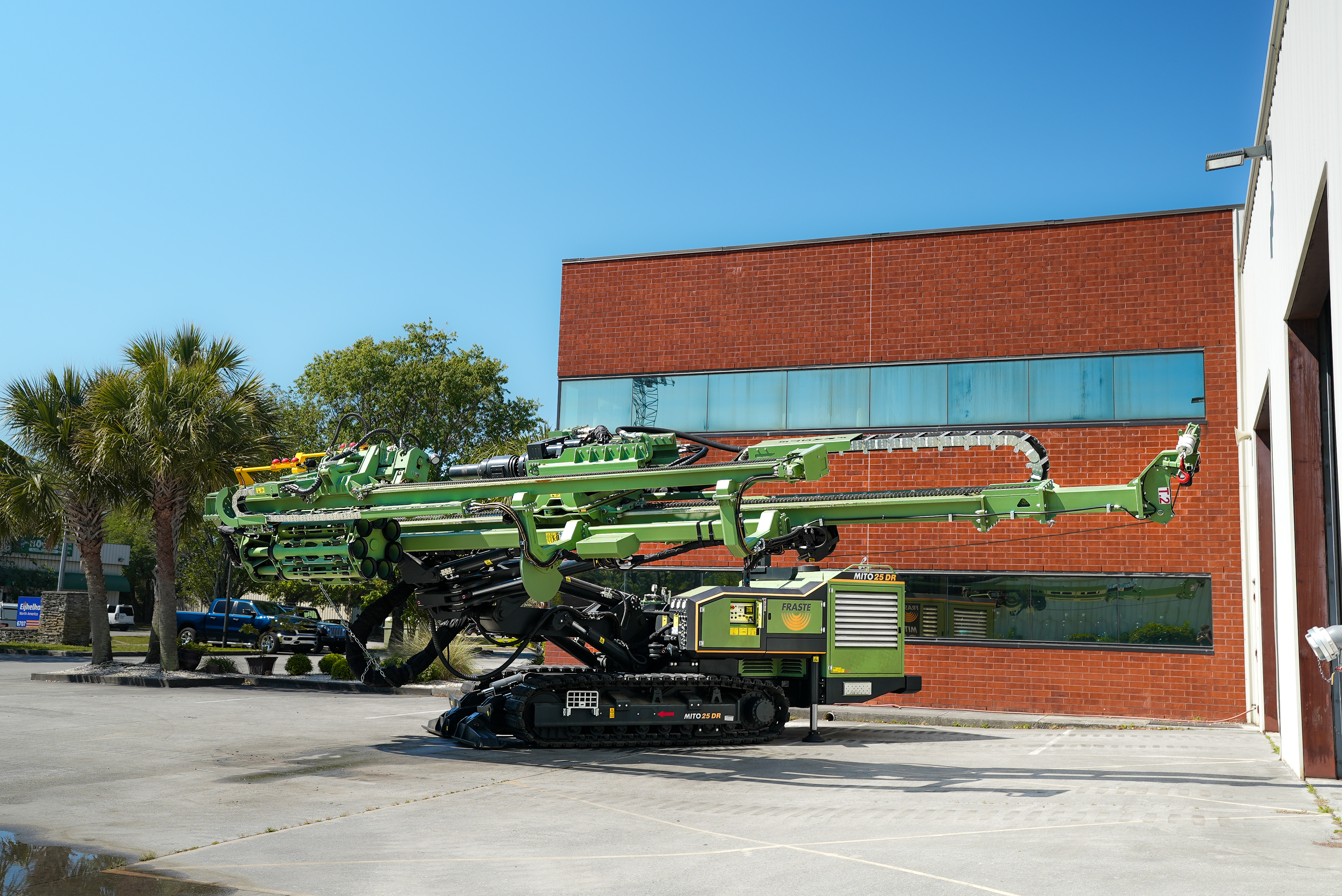

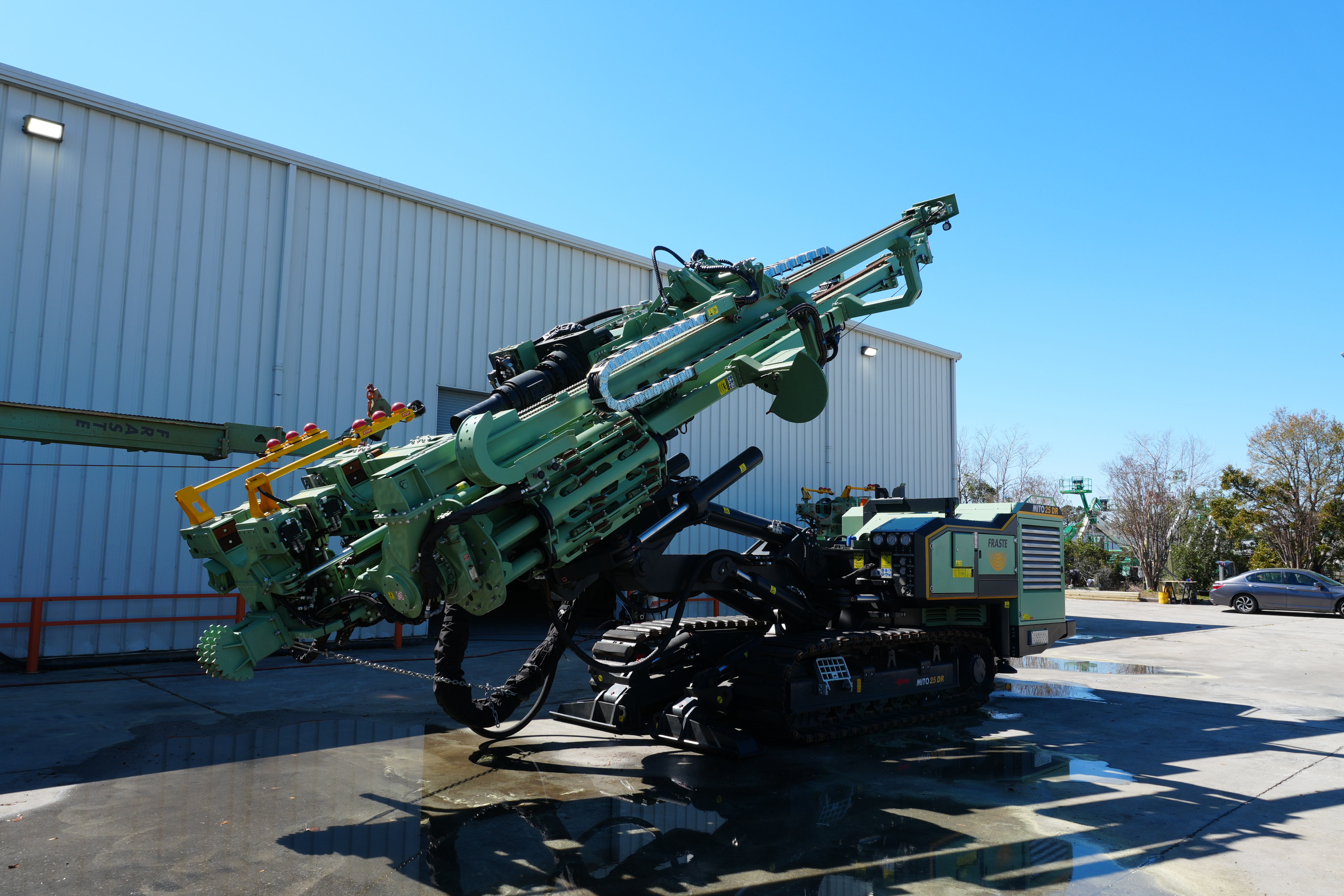

For sale - MITO 25 DR – High-Performance Drilling Rig

The MITO 25 DR is a versatile and powerful drilling rig designed for demanding foundation and civil engineering projects. With a wide range of equipment options—including rotary heads, hydraulic hammers, double head systems, water/mud pumps, and drill pipe/casing loading systems—this rig is built to deliver performance and flexibility in the field.

  • Low hours
  • Available to ship in 3 days
  • Special financing available

Description

Low operating hours. Available to ship in just 3 days. Special financing available.

Key Features

  • Heavy-Duty, Stable Platform
    Built for challenging conditions with expandable crawlers and four outriggers—offering exceptional stability in any position (a rare feature among rigs in its class).
  • Full-Angle Drilling Capability
    Both the rig and rod feeder operate at any angle for unmatched flexibility on site—ideal for geotechnical, foundation, or exploration drilling.

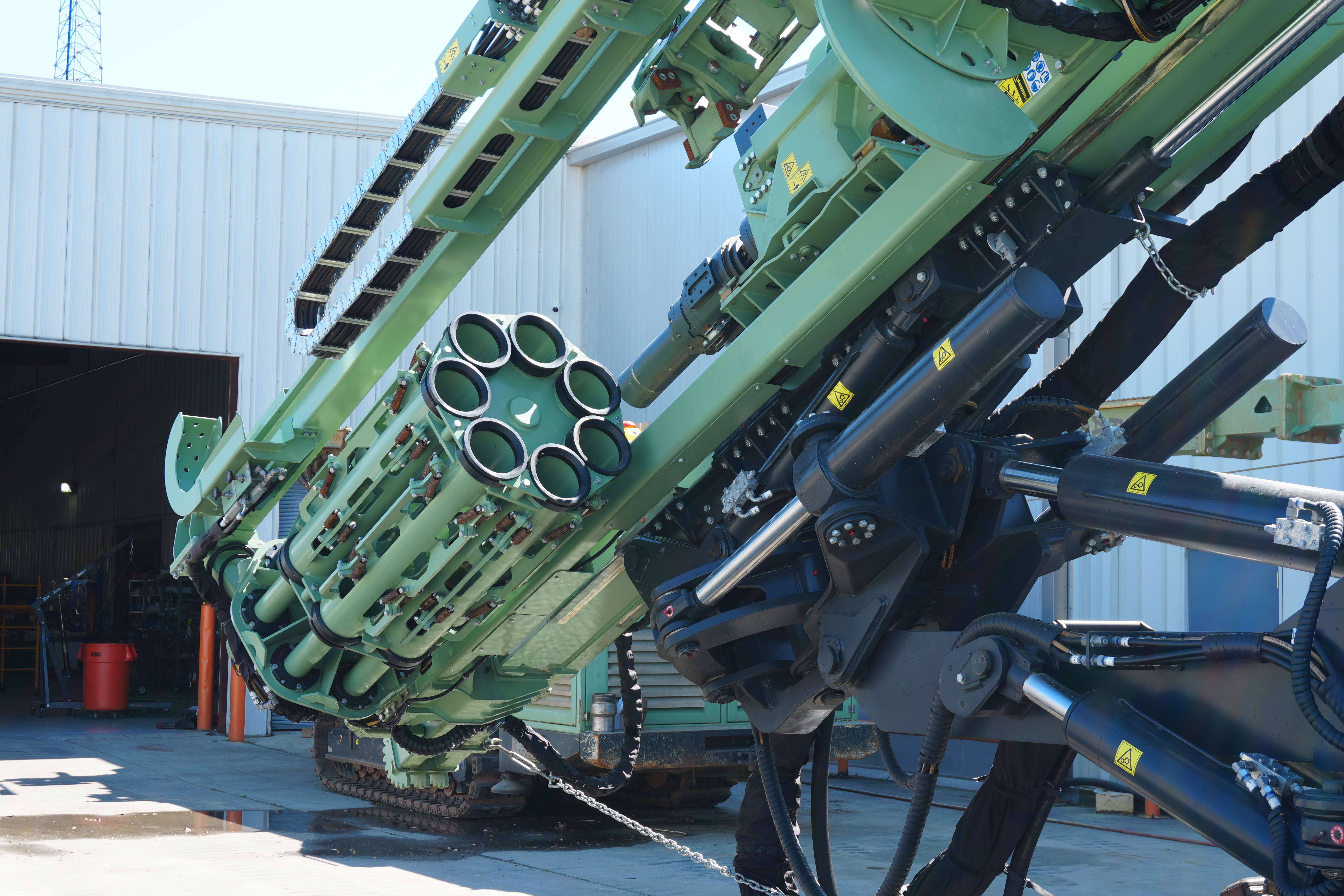

  • Rod & Casing Carousel (3m)
    Integrated system that handles rods insidethe casing, simultaneously. Compatible with 152 mm (6") casing and 89 mm (3.5") rods. A rare configuration few manufacturers offer.
  • Double Rotary Setup (Customizable)
    Comes standard with a double rotary configuration:
    • Lower rotary:21,000 ft-lbs torque for heavy casing
    • Upper rotary:8,700 ft-lbs torque for drilling flexibility
      Also configurable for single rotary or Top Hammer applications.
  • Extended Drilling Reach

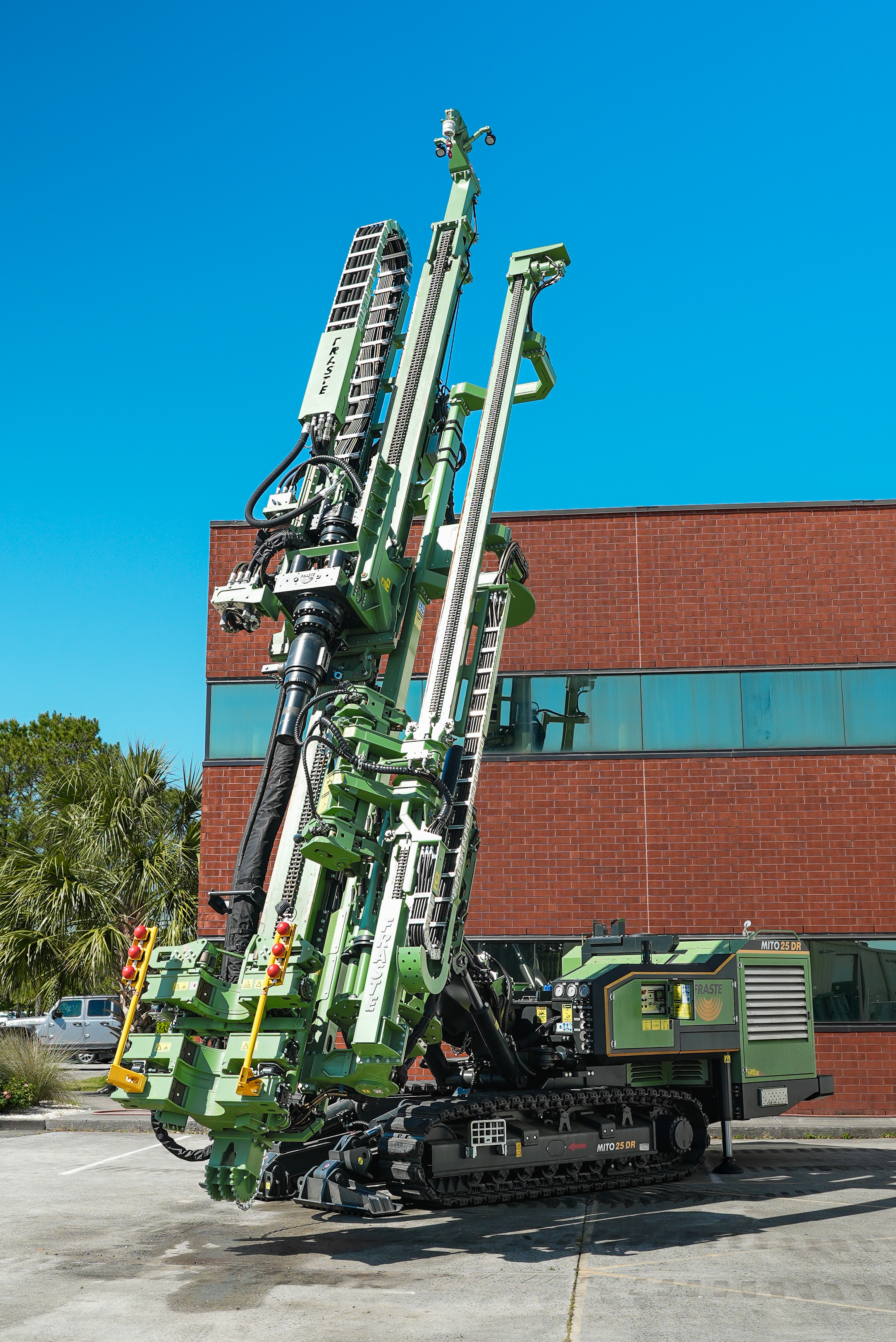

    Mast supports 6-meter rods, allowing for deeper and more efficient drilling cycles.
  • Hydraulic Rod & Casing Guides
    Boosts accuracy and control—available only from select manufacturers.

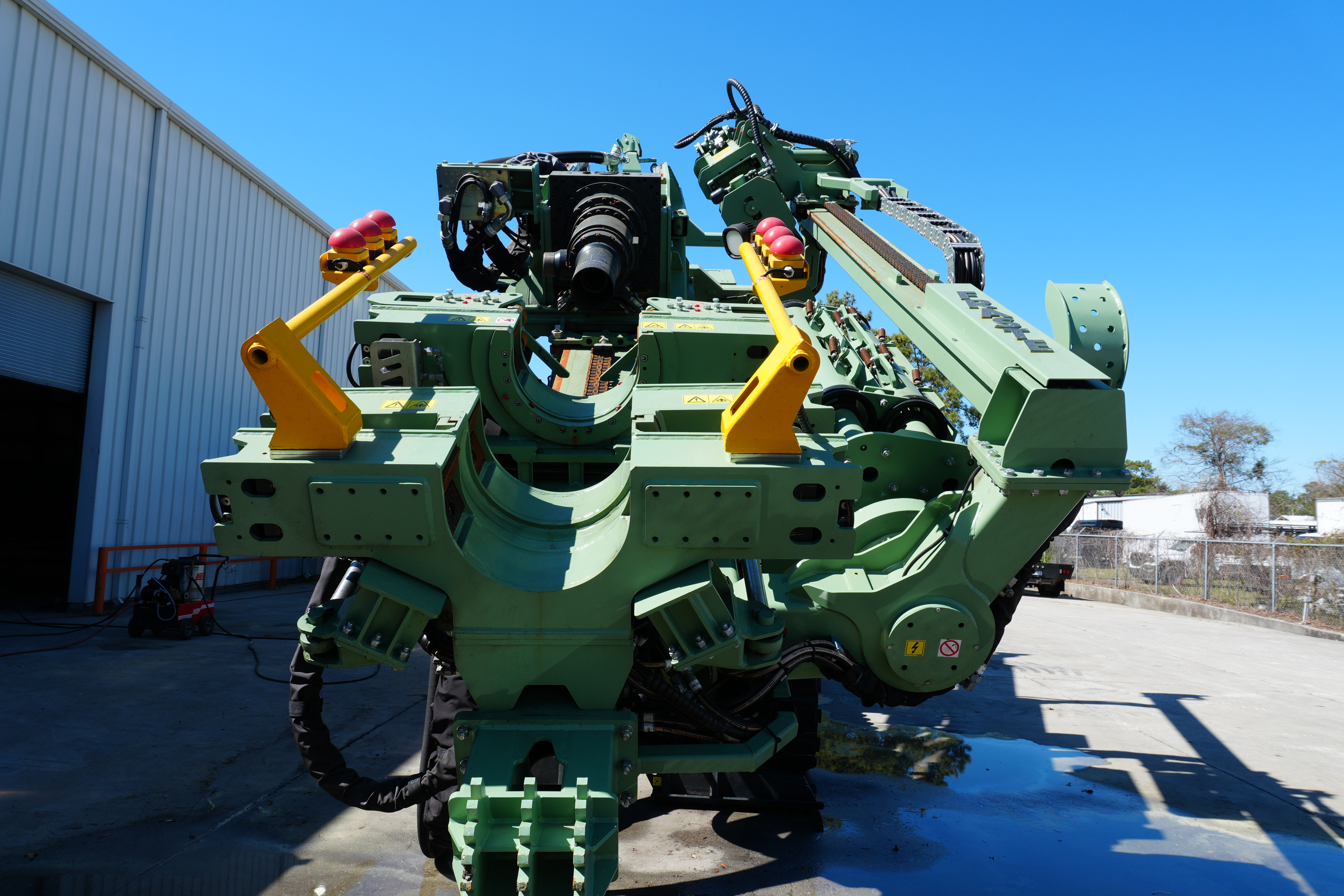

  • Triple Clamp & Breaker System
    Handles diameters from 60–360 mm. Upper clamp features 800 mm of vertical movement to simplify casing extraction.
  • Powerful Winch & Line Lubricator
    Equipped with a 4,400 lb winch and built-in lubricator to extend equipment life and improve drilling efficiency.
  • Fully Remote Controlled
    Safe, convenient full-function radio control allows one-operator handling from a distance.
  • Optional Rubber Track Pads
    Rubber shoes can be added or removed based on terrain and project needs.
  • Robust Engine
    Powered by a 275 HP engine to ensure consistent, high-performance operation in any condition.
  • Efficient Transport & Setup
    With a total weight of approx. 30 tons (66,000 lbs), this rig combines heavy-duty capability with site mobility.



Why Choose the MITO 25 DR?

✔️ Low hours, like-new condition
✔️ Ready to ship in 3 days
✔️ Financing options available
✔️ Backed by a trusted name in drilling solutions

Get in touch with our team at ussales@eijkelkamp.com to get more information or request a quotation via the form.
