With the soil oxygen meter set, growing conditions for crops can be determined without time-consuming augering.

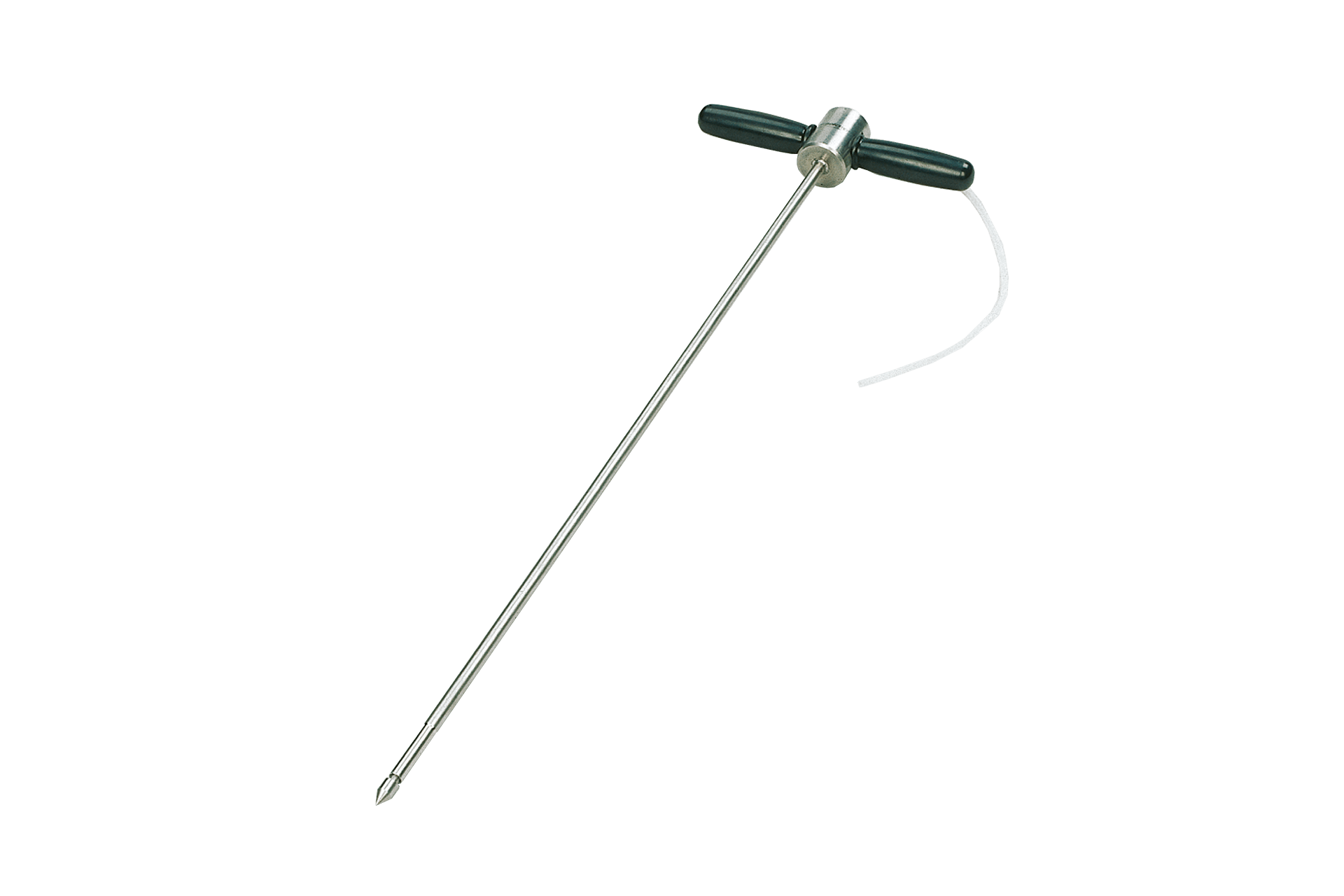

Carry out a soil oxygen measurement easily and quickly using a needle probe and an oxygen content meter, without the need for drilling. A soil oxygen measurement provides information about the soil climate.
The meter provides continuous readings and has a measuring range of 0 to 40%.
The oxygen meter works with an electrochemical cell. This cell has a limited lifespan (approximately 1.5 years) and must therefore be replaced regularly. Calibration is simple on outside air and 0% oxygen (oxygen-free gas).
Applications
Set Contents
| Soil oxygen content analysis system | |
|---|---|
| Cable length (between probe and meter) | 1 m |
| Range | 0 - 40% volume |
| Calibration | Two-point (outside air and 0%) |
| Detection method | Electrochemical sensor |
| Response time | Direct |
| Batteries | 3 x 1,5V penlites |
| Operating hours | approx. 30 |
| Operating temperature | -12 to +45 °C |
| Package size | 117 x 27 x 23 cm |
| Weight | 5.1 kg |
