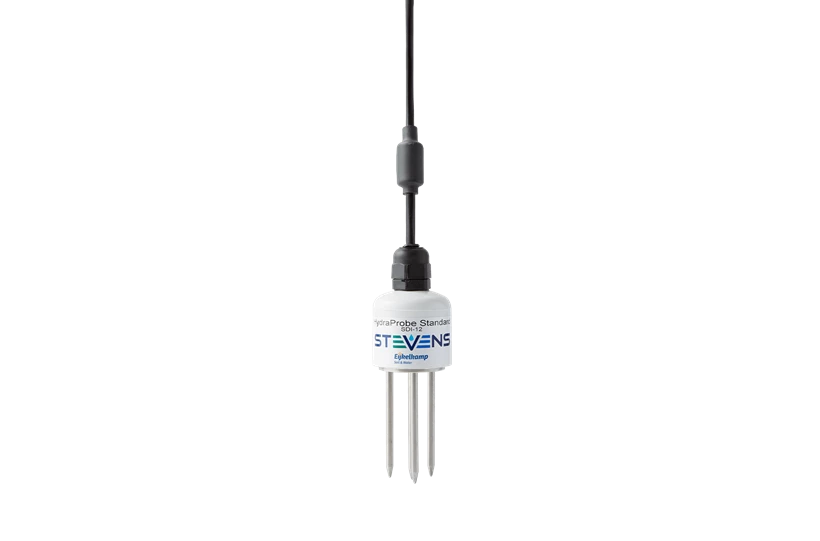

HydraProbe SDI-12 Standard

14.28

Soil moisture sensor SDI-12 Standard, with patented technology to measure the two most significant soil parameters: moisture and temperature. Available with cable in varying lengths for fixed installation.

  • Continuous accuracy without calibration
  • Accurate across different locations, soil types, moisture range and seasons
  • 5 year warranty and fully potted components
  • Compatible with any SDI-12 capable data logger - no setup required

Description

Looking for a rugged soil moisture sensor for long term monitoring? The HydraProbe SDI-12 Standard soil moisture sensor is suitable for the measurement of soil moisture in all soils. It can measure moisture in the range from completely dry to fully saturated, with an accuracy of accuracy +/- 0.01 WFV.

The HydraProbe is the most scientifically researched soil sensor available and is depended on by the USDA, NOAA, farmers, leading irrigation companies, and universities for over 25 years. It has been engineered to handle the terrain you want to measure and provides data you can trust year after year.

The temperature range is -10°C to 60°C, with a measurement accuracy of 0.3°C. The information can be read out with a data logger.

Variations

If you want to measure soil moisture and temperature only, the HydraProbe Standard will suffice. If you want to measure salinity as well, choose the HydraProbe Pro.

The following variations in cable length are available:

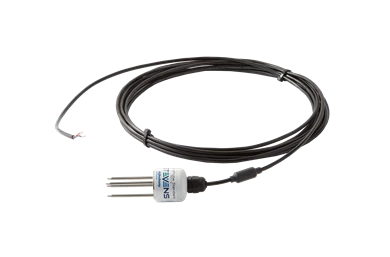

  • 14.28.01 HydraProbe SDI-12 Standard, 7.5 metre cable
  • 14.28.02 HydraProbe SDI-12 Standard, 15 metre cable
  • 14.28.03 HydraProbe SDI-12 Standard, 30 metre cable

Read-out unit

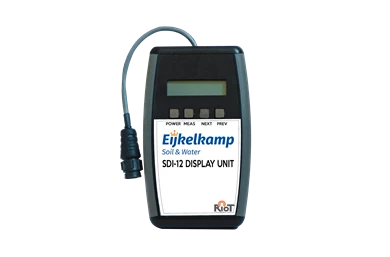

To get immediate readings of the current measurement conditions from your HydraProbe sensor, you can opt for the complete set with read-out unit. The handheld read-out unit reads data from HydraProbes and displays the volumetric moisture content as a percentage. It features a large display window in a robust weather resistant casing.

  • 14.28.SA HydraProbe with SDI-12 read-out unit and 7.5 metre cable

Specifications

HydraProbe SDI-12 Standard
Measuring principle coaxial impedance dielectric reflectometry
Length measuring pins 57 mm
Communication protocol SDI-12 Standard v. 1.2
Cable 3-wire: power, ground, data
Baud rate 1200
Addressing Serial; allows multiple sensors to be connected to any SDI-12 data logger via a single cable
Power supply 9-20 VDC
Power consumption <1 mA idle / 10 mA active
Additional specifications Please see the brochure for all specifications
