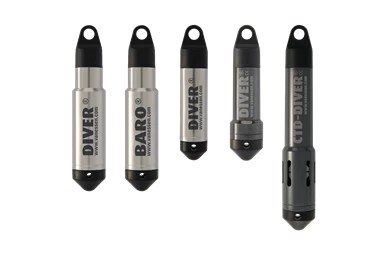

Diver water level loggers family
Baro Diver water level logger
Baro Diver water level logger
Diver water level loggers family

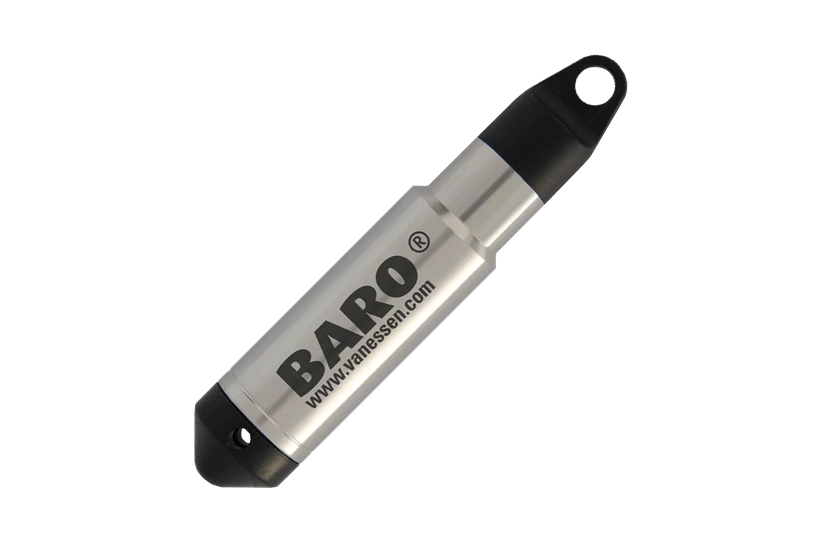

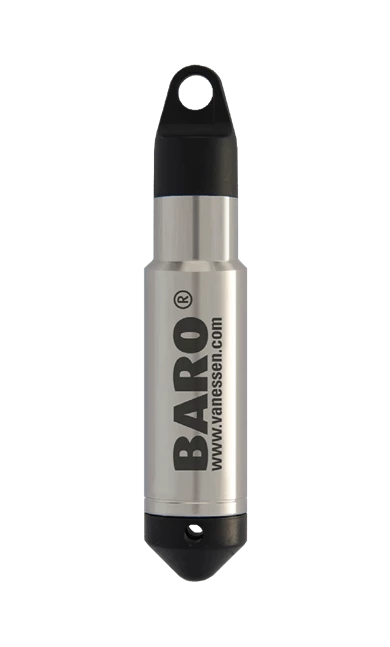

Baro-Diver

11.11.56.01

The Baro-Diver accurately captures changes in atmospheric pressure. Attractively priced and easy to adjust, one Baro-Diver covers a radius of up to 15km, depending on the topography.

  • Accurately captures changes in atmospheric pressure
  • Low maintenance, no user calibration
  • Reliable and accurate data

Description

The Baro-Diver measures atmospheric pressure and is used to compensate for the variations in atmospheric pressure measured by other Diver types. The Baro-Diver can also be used for measuring shallow water levels up to 1 metre.

For each measurement, the Baro-Diver simultaneously registers barometric pressure, air temperature, date, and time. It samples pressure and temperature at fixed length intervals, storing the values in the internal working memory capable of storing 72,000 measurements per parameter.

Features

  • Compact size: diameter of 22 mm and length of 110 mm
  • Memory: 72,000 records of time stamp, pressure and temperature with back-up
  • Continuous and fixed length memory

Note: the Baro-Diver must be installed in such a way that it measures atmospheric pressure only under all conditions. A location that is not subjected to rapid temperature variations is preferred.

Applications

  • Geohydrological research
  • Water quantity research
  • Monitoring water quantity

Specifications

Baro-Diver
Battery life 8-10 years
Data storage capacity 72,000 with 72,000 back-up
Operating temperature -10 - 50℃
Product material Stainless steel housing, ceramic pressure sensor
Measured parameters temperature and pressure
Weight 104
