Mechanical Current Meter
Mechanical Current Meter
Mechanical Current Meter
Mechanical Current Meter
Mechanical Current Meter
Mechanical Current Meter

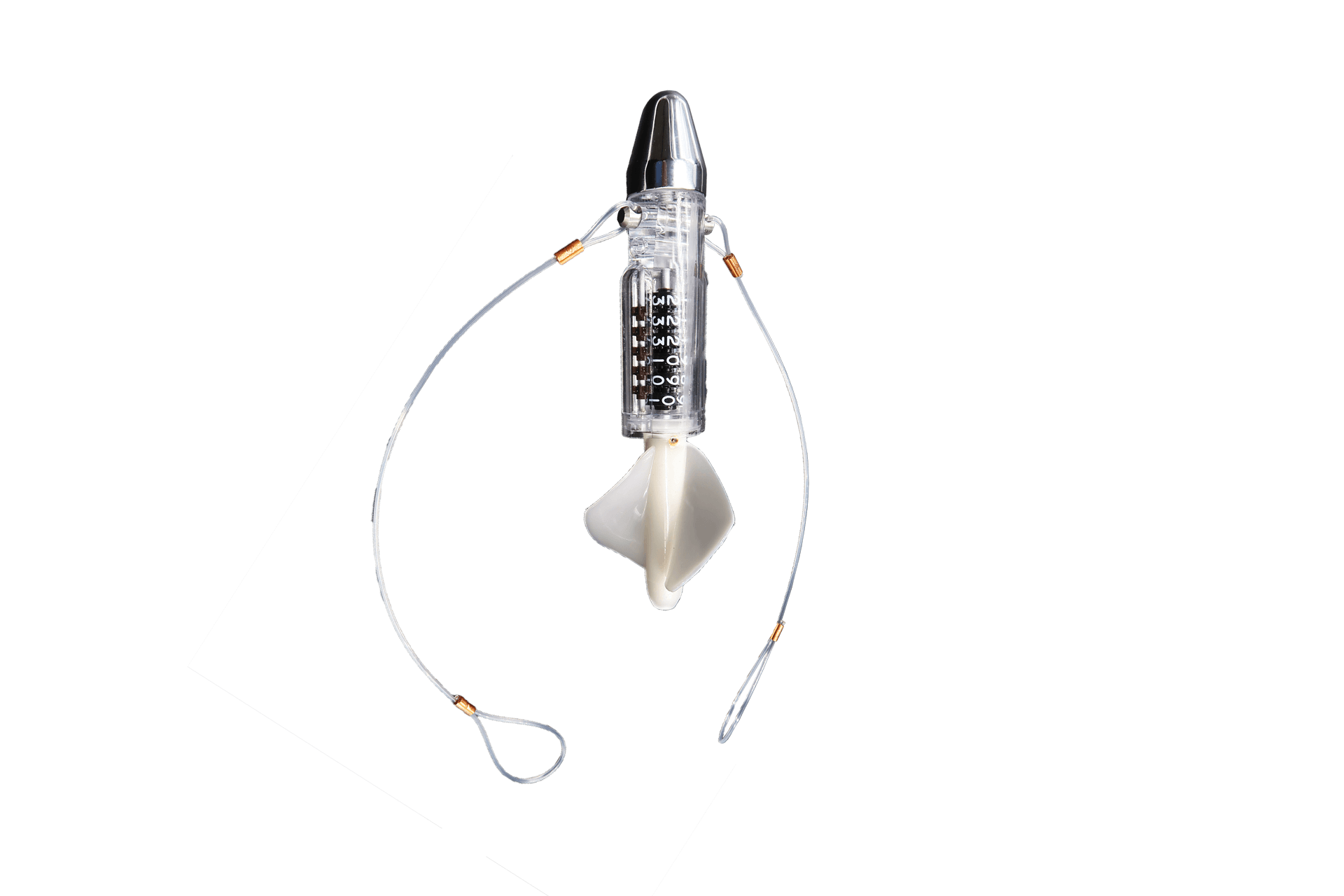

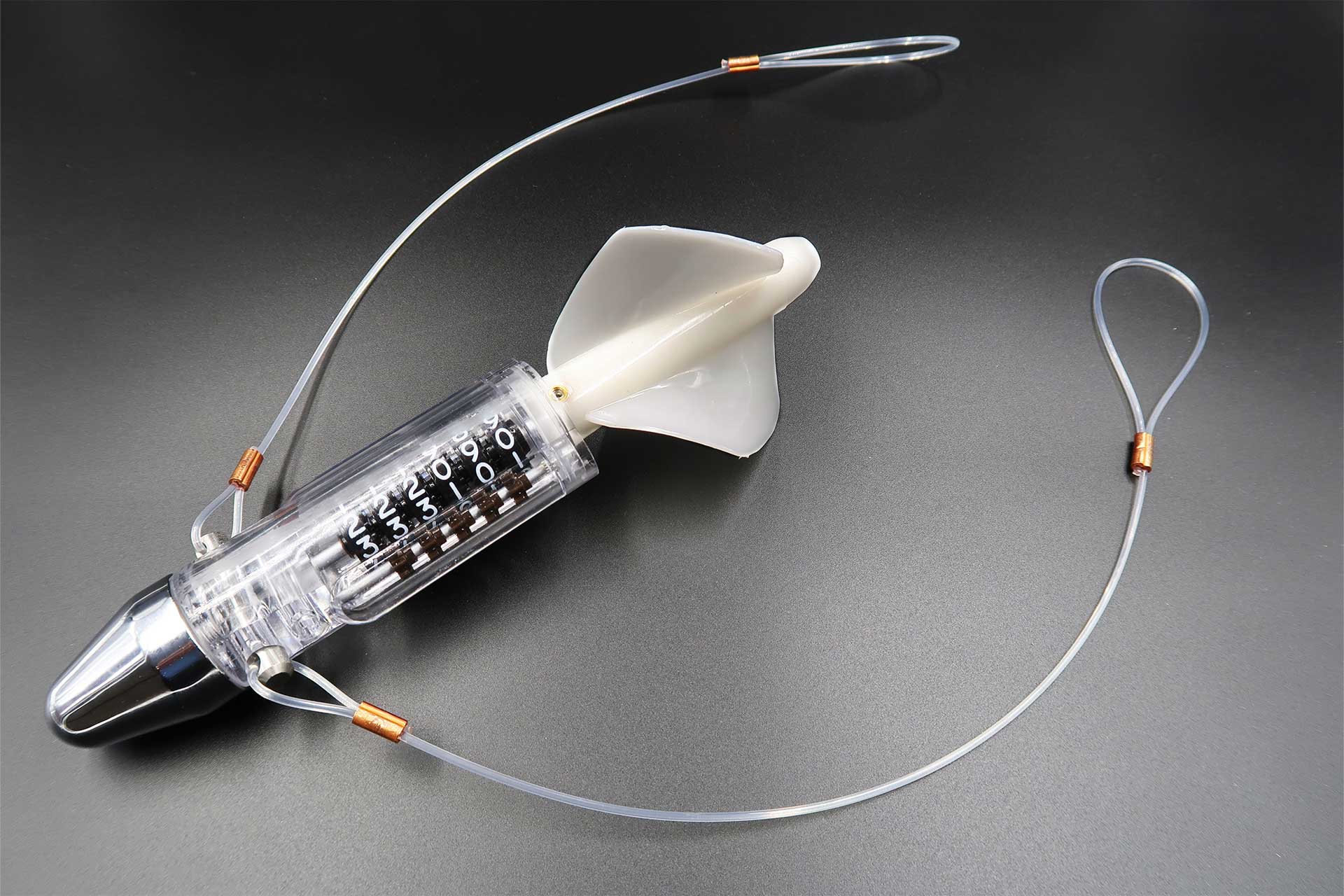

Mechanical current meter

13.14

Small, lightweight mechanical current velocity meter, suitable for measurements in rivers, channels, sewage systems, pipes, and more. Complete with line attachment and case.

  • Small and lightweight
  • Corrosion proof
  • Can be applied at great depths
  • Balanced for dynamic stability

Description

This mechanical current velocity meter has a measuring range of approximately 0.3 - 25.9ft. (0.1 - 7.9 m)/s. Suspended from a wire, the meter can be applied at great depth.

The meter is balanced in such a way that it will remain in a horizontal position even if it's pulled at speed by a line. The propeller is linked directly to a six digit counter, placed within the instrument, that registers and visualises every single rotation of the propeller, similar to the mileage counter in a car.

After retrieval it is possible to read the overall number of rotations of the propeller on the counter through a clear synthetic window. The meter can be mounted to a wire as well as to a telescopic rod (with an extended length of 7.9 feet/2.4 meter).

Applications

  • Irrigation research
  • Water quantity research
  • Monitoring water quantity
  • Discharge measurements

Note: not suitable for professional measurements in slow running waters.

Specifications

Mechanical current meter
Measured parameters meter per second
Measuring range 0.3 - 25.9 ft. (0.1 - 7.9 m)/s
Standard propeller diameter 2.8 inch (70 mm)
Rod length 7.9 feet (2.4 meters)
Registration type Manual
Package size 12 x 4 x 10 inch (30 x 11 x 25 cm)
Weight 2.2 lb (1 kg)
